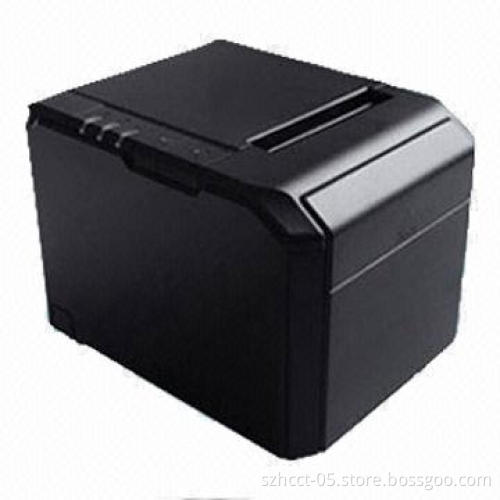

HGP U80300I Thermal Printer

Get Latest Price

Payment Type:: T/T, L/C, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal or Western Union

Product Description

Features:

ESC/POS and start command sets are compatible
Interfaces: serial +USB + 100bps Ethernet standard, parallel +USB are optional
Built-in web config page, make Ethernet setting are moreconvenient through IE
100Mbps network interface card make connection and print morefaster
Supports two-dimensional bar code printing function(optional)
Standard GB18030 simplified/traditional Chinese characterlibrary
Built-in large data buffer to receive and store printingdata
Characters can be enlarged, bold, underlined, character linespacing can be adjusted
Supports different density bitmap and graphics printing
Supports network printing status monitoring, computer multipleconnection
Microsoft Windows driver, Linux driver, OPOS driver areavailable

Specification:

Printing method: direct thermal line
Printing width: 64/76mm
Dot density: 512/576 dots per line
Printing speed: 300mm/s
Interfaces: serial + USB + Ethernet, USB + parallel
Paper diameter: 83mm
Line space: 3.75mm (can be adjusted)
Character size: ANK font
Font A: 12 x 24 dots
Font B: 9 x 17 dots
Simplified/traditional Chinese characters: 24 x 24 dots
Barcode page: PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/East Europe/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/Latvian/PC1001/PT151,1251/WPC1257/PC864)/Vietnam)/Thai
Barcode mode: UPC-A/UPC-E/JAN13 (EAN13)/JAN8 (EAN8)code39/ITF/codabar/code93/code128/ QRcode
Fonts: GB18030
Buffer data: 128kb
NV flash: 256kb
Power cash drawer output: DC 24V/1A
Power supply: 110/220V AC, 50 to 60Hz, 24V DC/2A

Physical properties:

Weight: 1.25kg
Dimension: 175 x 140 x 137mm

Environment:

Working environment temperature: 0 to 45°C
Humidity: 10 to 80%
Storage environment temperature: -10 to 60°C
Humidity: 10 to 90%
Auto-cutter reliability: 150km

ESC/POS and start command sets are compatible

Interfaces: serial +USB + 100bps Ethernet standard, parallel +USB are optional

Built-in web config page, make Ethernet setting are moreconvenient through IE

100Mbps network interface card make connection and print morefaster

Supports two-dimensional bar code printing function(optional)

Standard GB18030 simplified/traditional Chinese characterlibrary

Built-in large data buffer to receive and store printingdata

Characters can be enlarged, bold, underlined, character linespacing can be adjusted

Supports different density bitmap and graphics printing

Supports network printing status monitoring, computer multipleconnection

Microsoft Windows driver, Linux driver, OPOS driver areavailable

Printing method: direct thermal line

Printing width: 64/76mm

Dot density: 512/576 dots per line

Printing speed: 300mm/s

Interfaces: serial + USB + Ethernet, USB + parallel

Paper diameter: 83mm

Line space: 3.75mm (can be adjusted)

Character size: ANK font

Font A: 12 x 24 dots

Font B: 9 x 17 dots

Simplified/traditional Chinese characters: 24 x 24 dots

Barcode page: PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/East Europe/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/Latvian/PC1001/PT151,1251/WPC1257/PC864)/Vietnam)/Thai

Barcode mode: UPC-A/UPC-E/JAN13 (EAN13)/JAN8 (EAN8)code39/ITF/codabar/code93/code128/ QRcode

Fonts: GB18030

Buffer data: 128kb

NV flash: 256kb

Power cash drawer output: DC 24V/1A

Power supply: 110/220V AC, 50 to 60Hz, 24V DC/2A

Weight: 1.25kg

Dimension: 175 x 140 x 137mm

Working environment temperature: 0 to 45°C

Humidity: 10 to 80%

Storage environment temperature: -10 to 60°C

Humidity: 10 to 90%
