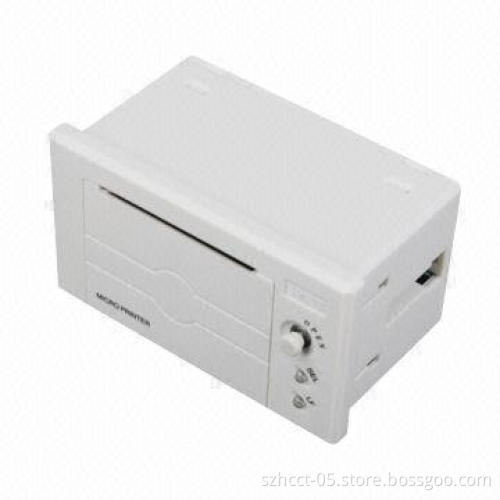

Micro Panel Receipt Printer, Easy Paper Loading

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal or Western Union

Product Description

Features:

Print:

Character set: IBM character set II and GB2312-80(Chinese)

Character per line: 16/24/32/40

Paper width: 44.5 ±0.5/57.5 ±0.5mm

Paper roll diameter: 40.0mm

Roll core inner diameter: 13mm

Reliability: MCBF/5 million lines

Interface: RS-232 and parallel

Paper supply method: drop-in easy paper loading

Power supply: 5V DC/3A

Physical outline dimensions: (W) 111 x (D) 64 x (H) 62mm

Installation port size: 103 x 57mm

Colors: beige/dark gray

Weight: 185g

Operating temperature: 0 to 50°C

Operating humidity: 0 to 80% RH

Smart appearance

Easy paper loading

Low noise thermal printing

Different interfaces optional

Front panel make paper replacement easily

Easily embedded to any kinds of instruments and meters

Method: thermal line

Speed: 15mm/second

Resolution: 8 dots/mm and 384 dots/line

Effective printing width: 32/48mm
