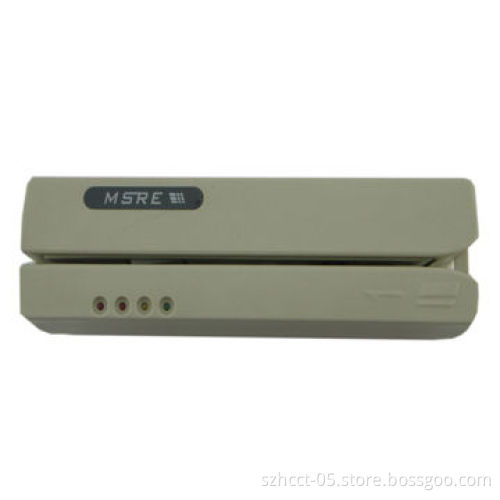

Hcc206 Magnetic Strip Reader, Writer Series, compatible with Msr206
  • Hcc206 Magnetic Strip Reader, Writer Series, compatible with Msr206
Hcc206 Magnetic Strip Reader, Writer Series, compatible with Msr206

Hcc206 Magnetic Strip Reader, Writer Series, compatible with Msr206

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • General:
    • Manual swipe magnetic card reader/writer HCC206
    • Series is designed to offer card reading/writing
    • Solution for ISO 7811-6 formats
    • It reads and writes up to 3 tracks of data like decoding/encoding and verifying up to 3 tracks of data simultaneously
    • Provides standard RS-232 interface to communicate with a host system or other terminal computers, USB at optional
    • Multiple applications: series is ideal for credit card verification and various card related applications
    • Robust construction: HCC206 is manufactured at our ISO 9001-2000 certified factory
  • Features:
    • Reading/writing magnetic stripe cards complies with ISO 7811/1-6 formats
    • Manual swipe to read and/or write cards with PC standard RS-232 interface
    • Read/write high and low coercive force of magnetic stripe (300-4000Oe)
    • 5-35ips operational swipe speed of writing data
    • 5-55ips operational swipe speed of reading data
    • +24VDC+/-10%, 2.0A maximum external power adapter attached
    • Writing and verifying data on single, dual or triple track in one swipe
    • Programming software included for various read/write applications
    • Program software for DOS and Windows 98/Me
    • High/low coercivity encoding circuitry selectable on screen
    • Programmable leading bit, raw data, DMV/AAMVA and user defined format
    • Compact size with dimensions of 210 x 62 x 65mm
  • Manual swipe magnetic card reader/writer HCC206
  • Series is designed to offer card reading/writing
  • Solution for ISO 7811-6 formats
  • It reads and writes up to 3 tracks of data like decoding/encoding and verifying up to 3 tracks of data simultaneously
  • Provides standard RS-232 interface to communicate with a host system or other terminal computers, USB at optional
  • Multiple applications: series is ideal for credit card verification and various card related applications
  • Robust construction: HCC206 is manufactured at our ISO 9001-2000 certified factory
  • Reading/writing magnetic stripe cards complies with ISO 7811/1-6 formats
  • Manual swipe to read and/or write cards with PC standard RS-232 interface
  • Read/write high and low coercive force of magnetic stripe (300-4000Oe)
  • 5-35ips operational swipe speed of writing data
  • 5-55ips operational swipe speed of reading data
  • +24VDC+/-10%, 2.0A maximum external power adapter attached
  • Writing and verifying data on single, dual or triple track in one swipe
  • Programming software included for various read/write applications
  • Program software for DOS and Windows 98/Me
  • High/low coercivity encoding circuitry selectable on screen
  • Programmable leading bit, raw data, DMV/AAMVA and user defined format
  • Compact size with dimensions of 210 x 62 x 65mm
