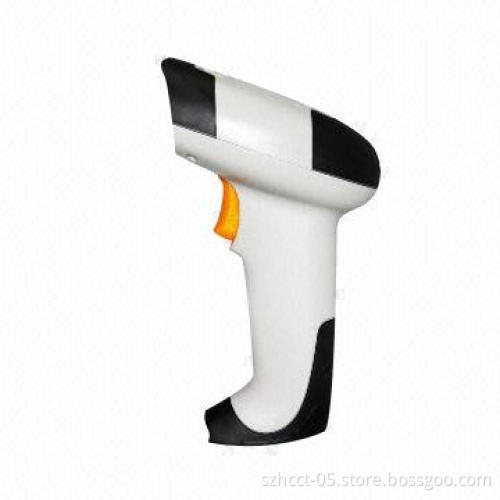

Barcode Scanner, Made of ABS and TPU

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal or Western Union

Product Description

Features:

Design meets ergonomic requirements, with unique gun likehandle for comfortable operation
Long time using will not cause fatigue
Precisely quick reading, accurately decode various 1Dbarcode
Multi built-in interface, KBW/PS2, RS232 and USB
With remarkable shock-resistant, can perform well even afterdropping from height of 2m to cement ground
HS-6100 is non-self induction and self induction

Specifications:

Light source: 650mm visible laser diode
Scan rate: 100 scans/sec
Resolution (0.9 piece): 0.10mm (4mil)
Bit error rate: 1/1 million
Depth of field: 10 to 420mm (0.9 piece)
Density: 0.25
Scan precision: 0.10 to 0.825mm (barcode)
Scan distance: 10 to 520mm
Elevation: 60
Obliquity: 45
Transmission rate: RS232
Baud rate: 2400 to 38400
Scan width: 60 to 30mm
Distance to object: 98mm at 100mm
Interfaces supported: RS232, PC Keyboard and USB
Laser safety: IEC 60825-1 standard Class 2 for laserproducts
Decode capability: UPC-A, UPC-E, industrial 2 of 5, interleaved2 of 5, EAN8, EAN 13, code 128, EAN 128, code 39, code 93,codabar125 and MSI/plessey
Voltage: 5V
Working current: 120mA
Standby current: 30mA
Operating temperature: -20 to 45°C
Storage temperature: -20 to 45°C
Operating humidity: 5 to 85% RH
Storage humidity: 5 to 85% RH
Drop test: 100 times/2m to concrete
Ambient light immunity sunlight: 3.000lux (maximum)
Dust-proof and waterproof
Standards: EN 50081, ICE529 and IP42
RoHS Directive-compliant
Electromagnetic interference (EMI)
External electromagnetic interference resistant
Dimensions: (L)175x(W)70x(H)100mm
Materials: ABS and TPU
Weight: 150g (scanner only)
