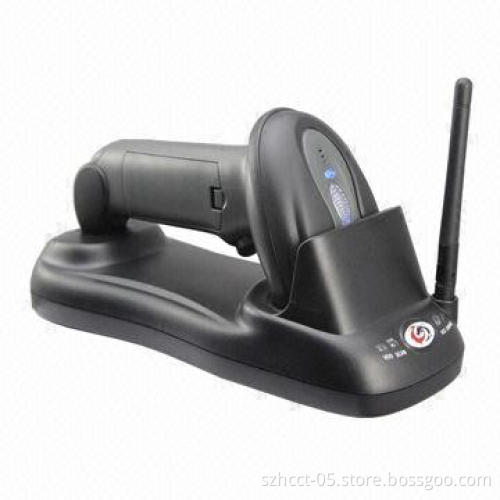

Wireless Barcode Scanner, Made of ABS and PC
  • Wireless Barcode Scanner, Made of ABS and PC
Wireless Barcode Scanner, Made of ABS and PC

Wireless Barcode Scanner, Made of ABS and PC

Get Latest Price
Payment Type:
T/T, L/C, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, PayPal or Western Union
Product Description
Product Description
  • Features:
    • Wireless induction charge
    • Battery can be easily taken from scanner
    • 1 base frame can support 99 scanners
    • Communication distance on open places: 300m
    • Anti-knock design: withstand 1.5M drops
    • Service life of button reaches up to million times
    • Supports RS232, PS2 and USB interface
    • Fully independent intellectual property rights
    • Having been award with multiple national patents
  • Specifications:
    • Light source: visible laser diode 650mm
    • Scan pattern: single scan and manual
    • Working frequency range: 433MHz ISM frequency
    • Communication distance: up to 300m at open places
    • Scan rate: 100 times/second
    • Scan precision: 0.10mm (pos0.9)
    • Scan width: 30mm at scan window and 220/220mm
    • Scan depth of field: 0 to 250mm(0.33mm pos0.9)
    • Decode capability: EAN-8, EAN-13, UPC-A, UPC-E, Code 39,Code128, EAN128, Codabar, industrial 2 of 5, interleave 2 of 5,Matrix 2 of 5 and MSI
    • Tilt and elevation and deflection: 30, 60 and 55
    • Supports interface: RS232, PS2 and USB
    • Print contrast: 30% UPC/EAN 100%
    • Mention pattern buzzer: indicator
    • Mechanical parameters:
      • Size: (L)95x(W)70x(H)60mm
      • Weight: 158g
      • Materials: ABS and PC
      • Cable standard 2M straight
    • Electrical parameters:
      • Battery capability: 900mAh
      • Voltage: 5V
      • Operating current: 85mA
      • Static current: 36mA
      • Certifications: EMC, CE, FCC and DOC
      • RoHS Directive-compliant
    • Environmental parameters:
      • Operating temperature: 0 to 45°C
      • Storage temperature: -20 to 60°C
      • Humidity: 5 to 85% relative humidity, non-condensing
      • Light level: daylight, 5000lux
      • Shock designed to withstand 1.5M drops
  • Wireless induction charge
  • Battery can be easily taken from scanner
  • 1 base frame can support 99 scanners
  • Communication distance on open places: 300m
  • Anti-knock design: withstand 1.5M drops
  • Service life of button reaches up to million times
  • Supports RS232, PS2 and USB interface
  • Fully independent intellectual property rights
  • Having been award with multiple national patents
  • Light source: visible laser diode 650mm
  • Scan pattern: single scan and manual
  • Working frequency range: 433MHz ISM frequency
  • Communication distance: up to 300m at open places
  • Scan rate: 100 times/second
  • Scan precision: 0.10mm (pos0.9)
  • Scan width: 30mm at scan window and 220/220mm
  • Scan depth of field: 0 to 250mm(0.33mm pos0.9)
  • Decode capability: EAN-8, EAN-13, UPC-A, UPC-E, Code 39,Code128, EAN128, Codabar, industrial 2 of 5, interleave 2 of 5,Matrix 2 of 5 and MSI
  • Tilt and elevation and deflection: 30, 60 and 55
  • Supports interface: RS232, PS2 and USB
  • Print contrast: 30% UPC/EAN 100%
  • Mention pattern buzzer: indicator
  • Mechanical parameters:
    • Size: (L)95x(W)70x(H)60mm
    • Weight: 158g
    • Materials: ABS and PC
    • Cable standard 2M straight
  • Electrical parameters:
    • Battery capability: 900mAh
    • Voltage: 5V
    • Operating current: 85mA
    • Static current: 36mA
    • Certifications: EMC, CE, FCC and DOC
    • RoHS Directive-compliant
  • Environmental parameters:
    • Operating temperature: 0 to 45°C
    • Storage temperature: -20 to 60°C
    • Humidity: 5 to 85% relative humidity, non-condensing
    • Light level: daylight, 5000lux
    • Shock designed to withstand 1.5M drops
  • Size: (L)95x(W)70x(H)60mm
  • Weight: 158g
  • Materials: ABS and PC
  • Cable standard 2M straight
  • Battery capability: 900mAh
  • Voltage: 5V
  • Operating current: 85mA
  • Static current: 36mA
  • Certifications: EMC, CE, FCC and DOC
  • RoHS Directive-compliant
  • Operating temperature: 0 to 45°C
  • Storage temperature: -20 to 60°C
  • Humidity: 5 to 85% relative humidity, non-condensing
  • Light level: daylight, 5000lux
  • Shock designed to withstand 1.5M drops
