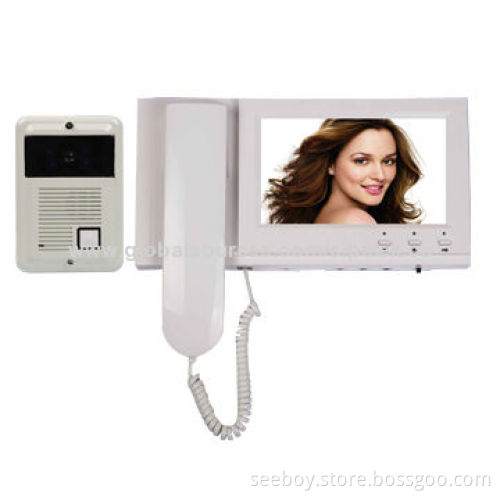

Wired Video Doorphone for Villa with 4-wired Connection and IR Camera

Wired Video Doorphone for Villa with 4-wired Connection and IR Camera

Get Latest Price

Payment Type:: T/T, L/C or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or Western Union

Product Description

For outdoor unit:

B/W and color 1/3-inch CCD camera with night vision
Outdoor station, door bell, video intercom, audio/video communication
Watches door entrance, remote lock release
Optional extended monitors and handset
Works with our all Sipo indoor monitors
Aluminum case
Flush mounting installation
Maximum wiring distance: 50m/165ft
Wiring: 4 wires
Communications way: synchronous
Scene illumination: 0.1 Lux (300mm from the camera)
Scanning frequency:
- Horizontal: 15.75kHz
- Vertical: 60Hz
Image angular:
- Horizontal: 68º
- Vertical: 55º
Angular adjust:
- Left: 13º
- Right: 13º
- Up: 4º
- Down: 4º
Ambient humidity: 45 to 95% RH
Ambient temperature: -10 to ±40°C
Video signal: 1Vp-p, 75Ω, PAL or NTSC
Power source: 12V DC, 160mA
Dimensions: 198 x 125 x 63mm
Inner packaging: 200 x 130 x 74mm
Carton size: 720 x 310 x 250mm, 20 pieces per carton
Net weight: 0.7kg
Gross weight: 0.9kg

For indoor unit:

7-inch color TFT LCD
Can connect to 1 outdoor station, and 1 audio extension handset
Surface mounting installation
Calling, intercom
Watches door entrance
Press button, opens door
Match with our outdoor cameras
Plastic case
Working voltage: 100 to 240V AC, 15V DC power adapter
Working current: ≤400mA
Wiring: 4 wires
Chime: ding dong chime
Communication duration: 6,090 seconds
Ambient temperature: -10 to 40°C
Ambient humidity: 45 to 95% RH
Video signal: 1Vp-p, 75Ω, PAL or NTSC
Dimensions (W x H x D): 284 x 225 x 60mm
Inner packaging: 290 x 234 x 80mm
Carton size: 600 x 420 x 255mm, 10 pieces per carton
Net weight: 0.78kg
Gross weight: 0.98kg

B/W and color 1/3-inch CCD camera with night vision

Outdoor station, door bell, video intercom, audio/video communication

Watches door entrance, remote lock release

Optional extended monitors and handset

Works with our all Sipo indoor monitors

Aluminum case

Flush mounting installation

Maximum wiring distance: 50m/165ft

Wiring: 4 wires

Communications way: synchronous

Scene illumination: 0.1 Lux (300mm from the camera)

Scanning frequency:

Horizontal: 15.75kHz
Vertical: 60Hz

Image angular:

Horizontal: 68º
Vertical: 55º

Angular adjust:

Left: 13º
Right: 13º
Up: 4º
Down: 4º

Ambient humidity: 45 to 95% RH

Ambient temperature: -10 to ±40°C

Video signal: 1Vp-p, 75Ω, PAL or NTSC

Power source: 12V DC, 160mA

Dimensions: 198 x 125 x 63mm

Inner packaging: 200 x 130 x 74mm

Carton size: 720 x 310 x 250mm, 20 pieces per carton

Net weight: 0.7kg

Gross weight: 0.9kg

Horizontal: 15.75kHz

Vertical: 60Hz

Horizontal: 68º

Vertical: 55º

Left: 13º

Right: 13º

Up: 4º

Down: 4º

7-inch color TFT LCD

Can connect to 1 outdoor station, and 1 audio extension handset

Surface mounting installation

Calling, intercom

Watches door entrance

Press button, opens door

Match with our outdoor cameras

Plastic case

Working voltage: 100 to 240V AC, 15V DC power adapter

Working current: ≤400mA

Wiring: 4 wires

Chime: ding dong chime

Communication duration: 6,090 seconds

Ambient temperature: -10 to 40°C

Ambient humidity: 45 to 95% RH

Video signal: 1Vp-p, 75Ω, PAL or NTSC

Dimensions (W x H x D): 284 x 225 x 60mm

Inner packaging: 290 x 234 x 80mm

Carton size: 600 x 420 x 255mm, 10 pieces per carton

Net weight: 0.78kg

Gross weight: 0.98kg
