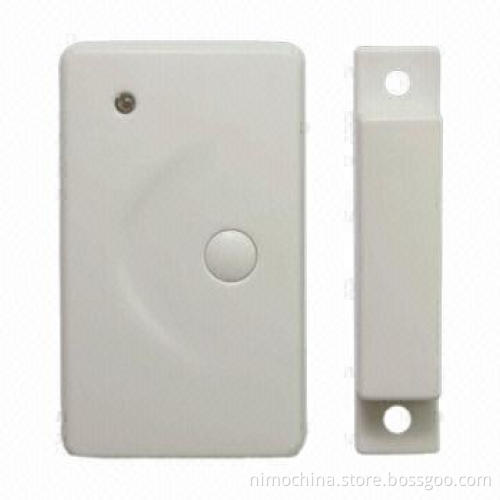

Wireless Magnetic Door Contact with Panic Button, Triggering Distance

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Features:

The sensors are used to protect the opening of both doors and windows
If a burglar opens the protected door or window, a magnetic switch inside the sensor, will trip, which sets off the security systems
Install one at every entrance to make sure your home is protected
Each sensor is supervised (self-checking) for professional reliability and offers you choice in design and performance
It will work with alarm systems, compatible with most standard security systems
Pull out the antenna of the magnetic detector: when the door or window is opened from the closed position, LED 1 will turn to red for 2 seconds
The magnetic detector will be triggered and will send alarming signal to the main unit
Applies widely to works, banks, stores, warehouses, offices and homestead, thanks to its kinds of protection abilities like anti-theft, anti-robbery, fire prevention, gas leakage protection and most importantly, emergency calls

Specifications:

Have emergency switch function
Low-consumption chip design
Low-voltages fault monitoring reports
2262 coded format, timing resistor (optional)
External antenna, long emission distance
Widely used in wireless home or business alarm system
Working voltages: 12V battery
Under voltages monitoring: 7.5/-0.5V
Static current: ≤10uA
Triggering distance range: 25-35mm
Emission current: ≤15mA
Emission distance: ≥150m (open area)
Emission frequency: 315/443MHz
Operating temperatures: -10 to 50°C
Dimensions: 65 x 38 x 16mm

The sensors are used to protect the opening of both doors and windows

If a burglar opens the protected door or window, a magnetic switch inside the sensor, will trip, which sets off the security systems

Install one at every entrance to make sure your home is protected

Each sensor is supervised (self-checking) for professional reliability and offers you choice in design and performance

It will work with alarm systems, compatible with most standard security systems

Pull out the antenna of the magnetic detector: when the door or window is opened from the closed position, LED 1 will turn to red for 2 seconds

The magnetic detector will be triggered and will send alarming signal to the main unit

Applies widely to works, banks, stores, warehouses, offices and homestead, thanks to its kinds of protection abilities like anti-theft, anti-robbery, fire prevention, gas leakage protection and most importantly, emergency calls

Have emergency switch function

Low-consumption chip design

Low-voltages fault monitoring reports

2262 coded format, timing resistor (optional)

External antenna, long emission distance

Widely used in wireless home or business alarm system

Working voltages: 12V battery

Under voltages monitoring: 7.5/-0.5V

Static current: ≤10uA

Triggering distance range: 25-35mm

Emission current: ≤15mA

Emission distance: ≥150m (open area)
