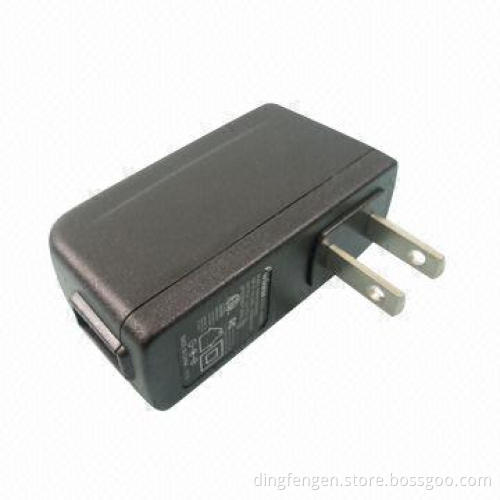

6W/USB power charger, vertical US plug with UL, FCC, CEC level 5 and EN 60950 certified
  • 6W/USB power charger, vertical US plug with UL, FCC, CEC level 5 and EN 60950 certified
6W/USB power charger, vertical US plug with UL, FCC, CEC level 5 and EN 60950 certified

6W/USB power charger, vertical US plug with UL, FCC, CEC level 5 and EN 60950 certified

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • External power supplies
  • Light, extra slim, sleek and compact design
  • Green power, full complies with CEC level V and MEPS IV EUP2011
  • High power density
  • Extra safe design, have got their respective safety approvals
  • Completed protect function
  • Suitable for an extremely wide range of applications
  • Including:
    • Mobile devices
    • ADSL
    • Pos
    • Audio and video products
    • Set-top-box
    • Household appliance
  • Input:
    • Input voltage: 90 to 264V AC
    • Frequency: 47 to 50/60 to 63Hz
    • Input current: 0.4A (maximum) 100/240VAC
    • Inrush current: 60A maximum 100V AC at maximum load
    • 100A maximum 240V AC at maximum load
    • Leakage current: 0.25mA Ma
  • Output:
    • 3.0 to 5.9V DC/0.01 to 2.2A
    • 6.0 to 12.0V DC/0.01 to 1.5A
    • 12.1-18.0V DC/0.01 to 0.99A
  • Over voltage protection
  • Over current protection
  • 110 to 250% of lo and auto-recovery
  • Electronic short circuit protection
  • Operating temperature: 0 to 40°C free convection
  • Operating humidity: 10 to 90% RH non-condensing
  • Sea level non-operating temperature: -20 to 80°C
  • Safety standards/certificates and approvals:
    • IEC/EN 60950-1:2005 (2Nd edition) + A1:2009
    • IEC/EN 60065:2001 + A1:2005 + A2:2010
    • CB, GS, CE, TUV, ETL, CCC, FCC, PSE KC and C-TICK
  • Mobile devices
  • ADSL
  • Pos
  • Audio and video products
  • Set-top-box
  • Household appliance
  • Input voltage: 90 to 264V AC
  • Frequency: 47 to 50/60 to 63Hz
  • Input current: 0.4A (maximum) 100/240VAC
  • Inrush current: 60A maximum 100V AC at maximum load
  • 100A maximum 240V AC at maximum load
  • Leakage current: 0.25mA Ma
  • 3.0 to 5.9V DC/0.01 to 2.2A
  • 6.0 to 12.0V DC/0.01 to 1.5A
  • 12.1-18.0V DC/0.01 to 0.99A
  • IEC/EN 60950-1:2005 (2Nd edition) + A1:2009
  • IEC/EN 60065:2001 + A1:2005 + A2:2010
  • CB, GS, CE, TUV, ETL, CCC, FCC, PSE KC and C-TICK
