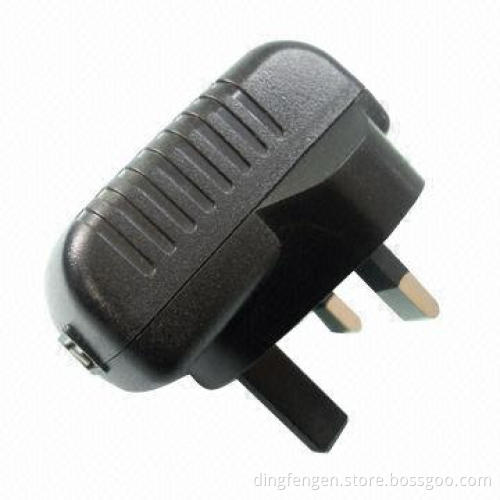

UK type USB power adapter, 12W for home appliance

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

External power supplies

Light, extra slim, sleek and compact design

Green power, full complies with CEC level V and MEPS IV EUP2011

High power density

Extra safe design, have got their respective safety approvals

Completed protect function

Suitable for an extremely wide range of applications:

Including:
- Mobile devices
- ADSL
- Pos
- Audio and video products
- Set-top-box
- Household appliance

Input:

Input voltage: 90 to 264V AC
Frequency: 47 to 50/60 to 63Hz
Input current: 0.4A (maximum) 100/240VAC
Inrush current: 60A maximum 100V AC at maximum load
100A maximum 240V AC at maximum load
Leakage current: 0.25mA Ma

Output:

3.0 to 5.9V DC/0.01 to 2.2A
6.0 to 12.0V DC/0.01 to 1.5A
12.1-18.0V DC/0.01 to 0.99A

Over voltage protection

Over current protection

110 to 250% of lo and auto-recovery

Electronic short circuit protection

Operating temperature: 0 to 40°C free convection

Operating humidity: 10 to 90% RH non-condensing

Sea level non-operating temperature: -20 to 80°C

Safety standards/certificates and approvals:

IEC/EN 60950-1: 2005 (2Nd edition) + A1:2009
IEC/EN 60065: 2001 + A1:2005 + A2:2010
CB, GS, CE, TUV, ETL, CCC, FCC, PSE KC and C-TICK

Including:

Mobile devices
ADSL
Pos
Audio and video products
Set-top-box
Household appliance

Mobile devices

ADSL

Pos

Audio and video products

Set-top-box

Household appliance

Input voltage: 90 to 264V AC

Frequency: 47 to 50/60 to 63Hz

Input current: 0.4A (maximum) 100/240VAC

Inrush current: 60A maximum 100V AC at maximum load

100A maximum 240V AC at maximum load

Leakage current: 0.25mA Ma

3.0 to 5.9V DC/0.01 to 2.2A

6.0 to 12.0V DC/0.01 to 1.5A

12.1-18.0V DC/0.01 to 0.99A

IEC/EN 60950-1: 2005 (2Nd edition) + A1:2009

IEC/EN 60065: 2001 + A1:2005 + A2:2010

CB, GS, CE, TUV, ETL, CCC, FCC, PSE KC and C-TICK
