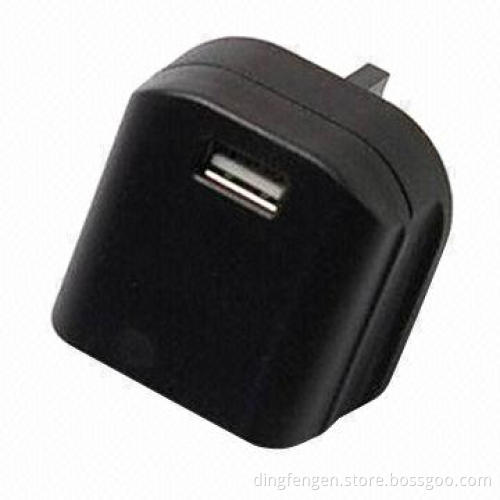

5V/550mA USB wall charger, UK, for mobile device, with BS, GS, RoHS and CEC certificates
  • 5V/550mA USB wall charger, UK, for mobile device, with BS, GS, RoHS and CEC certificates
  • 5V/550mA USB wall charger, UK, for mobile device, with BS, GS, RoHS and CEC certificates
5V/550mA USB wall charger, UK, for mobile device, with BS, GS, RoHS and CEC certificates
5V/550mA USB wall charger, UK, for mobile device, with BS, GS, RoHS and CEC certificates

5V/550mA USB wall charger, UK, for mobile device, with BS, GS, RoHS and CEC certificates

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • USB AC charger, 3.5W series:
    • High quality, high efficiency, extra safe design
    • I/P: 100-240V AC 50/60Hz
    • O/P: 5V, 550mA max
    • UL, GS, CE, C-TICK, PSE, FCC approved
    • Energy efficiency: CEC V, EUP 2011, MEPS V
  • Applications:
    • Mobile device
    • Set top box
    • ADSL
    • Chargers
    • Household appliance
    • Audio and video products
  • Specifications:
    • Rated input: 100-240V AC, 50/60Hz
    • Operating range: 90-264V AC, 47-63Hz
    • Output voltage: available 5V DC
    • Output current: available from 10mA to 700mA
    • Output power: 3W (maximum)
    • RoHS, PAHs, REACH, WEEE compliant
    • 6P, NP available
    • Energy efficiency: V (CEC, EUP, ERP, MEPS)
    • Input current: 0.15A (maximum), 100/240V AC
    • Inrush current: 15A (maximum), 120V AC at max load, 30A max 240V AC at max load
    • Leakage current: 0.25mA (maximum)
    • Load regulation: ±5%
    • MTBF: 50K hours at 25°C
    • LED indicator: optional
    • Size: 43 x 36 x 22.5mm (UL), 54 x 43 x 22.5mm (EU), 43 x 41.5 x 22.1mm (AU), 50 x 38.5 x 22.3mm (the UK)
    • Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950
    • Safety approvals: UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC
  • Protections:
    • Short-circuit
    • Over voltage
    • Over current
  • Environmental requirements:
    • Operating temperature: 0-40°C
    • Storage temperature: -20-80°C
    • Operating relative humidity: 10-90% RH
  • High quality, high efficiency, extra safe design
  • I/P: 100-240V AC 50/60Hz
  • O/P: 5V, 550mA max
  • UL, GS, CE, C-TICK, PSE, FCC approved
  • Energy efficiency: CEC V, EUP 2011, MEPS V
  • Mobile device
  • Set top box
  • ADSL
  • Chargers
  • Household appliance
  • Audio and video products
  • Rated input: 100-240V AC, 50/60Hz
  • Operating range: 90-264V AC, 47-63Hz
  • Output voltage: available 5V DC
  • Output current: available from 10mA to 700mA
  • Output power: 3W (maximum)
  • RoHS, PAHs, REACH, WEEE compliant
  • 6P, NP available
  • Energy efficiency: V (CEC, EUP, ERP, MEPS)
  • Input current: 0.15A (maximum), 100/240V AC
  • Inrush current: 15A (maximum), 120V AC at max load, 30A max 240V AC at max load
  • Leakage current: 0.25mA (maximum)
  • Load regulation: ±5%
  • MTBF: 50K hours at 25°C
  • LED indicator: optional
  • Size: 43 x 36 x 22.5mm (UL), 54 x 43 x 22.5mm (EU), 43 x 41.5 x 22.1mm (AU), 50 x 38.5 x 22.3mm (the UK)
  • Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950
  • Safety approvals: UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC
  • Short-circuit
  • Over voltage
  • Over current
  • Operating temperature: 0-40°C
  • Storage temperature: -20-80°C
  • Operating relative humidity: 10-90% RH
