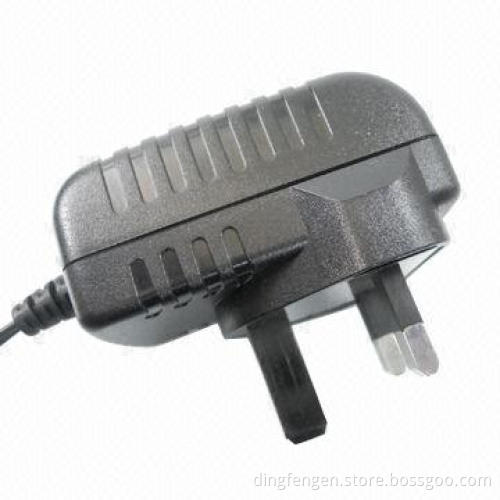

UK plug power adapter, BS, GS and TUV certified, 13.5W power, 5/9/12V output voltage

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Lightweight, extra slim, sleek and compact design

Green power, full complies with CEC level V and MEPS IV EUP2011

High power density

Extra safe design, have got their respective safety approvals

Completed protect function

Applications:

Mobile devices
Printer
POS
Audio and video product
Hard disk drive
Set-top box
Household appliance

Input:

Voltage: 90 to 264V AC
Frequency: 47 to 50/60 to 63Hz
Current: 0.4A (maximum), 100/240V AC
Inrush current:
- 50A, 100V AC at maximum load
- 60A, 240V AC at maximum load
Leakage current: 0.25mA (maximum)

Output:

Overvoltage protection
Over-current protection at 110 to 200% of low and auto-recovery
Electronic short-circuit protection
Operating temperature: 0 to 40°C (free convection)
Operating humidity: 10 to 80%RH (non-condensing)
Sea level non-operating temperature: -20 to 80°C

Safety standards:

IEC/EN 60950-1:2005 (2nd Edition)+A1:2009
IEC/EN 60065:2001+A1:2005+A2:2010
GB 4943-2001 and GB 8898-2001
K60950-1
AS/NZS.60950.1:2003inc.Amdt1,2,3
AS/NZS.60065:2003inc,Amdt.1

Certifications: CB, GS, CE, UL, CCC, BEAB, FCC, PSE C-TICK and KC

Mobile devices

Printer

POS

Audio and video product

Hard disk drive

Set-top box

Household appliance

Voltage: 90 to 264V AC

Frequency: 47 to 50/60 to 63Hz

Current: 0.4A (maximum), 100/240V AC

Inrush current:

50A, 100V AC at maximum load
60A, 240V AC at maximum load

Leakage current: 0.25mA (maximum)

50A, 100V AC at maximum load

60A, 240V AC at maximum load

Overvoltage protection

Over-current protection at 110 to 200% of low and auto-recovery

Electronic short-circuit protection

Operating temperature: 0 to 40°C (free convection)

Operating humidity: 10 to 80%RH (non-condensing)

Sea level non-operating temperature: -20 to 80°C

IEC/EN 60950-1:2005 (2nd Edition)+A1:2009

IEC/EN 60065:2001+A1:2005+A2:2010

GB 4943-2001 and GB 8898-2001

K60950-1

AS/NZS.60950.1:2003inc.Amdt1,2,3

AS/NZS.60065:2003inc,Amdt.1
