13,5W US Plug Power Adapter, UL-/FCC-markrd, EN60950 and 60065

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

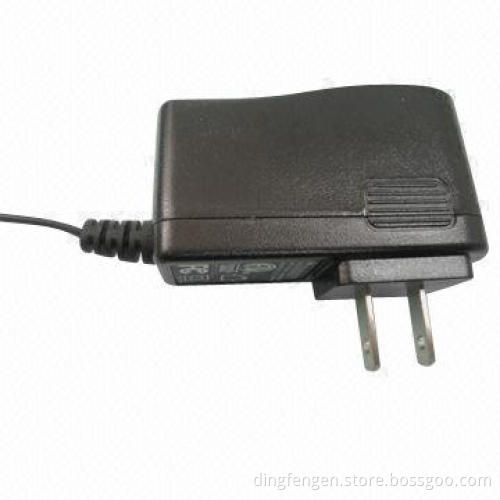

External power supplies

Light, extra slim, sleek, compact design

Green power, full complies with CEC level V, MEPS IV EUP2011

High power density

Extra safe design, have got their respective safety approvals

Completed protect function

Suitable for an extremely wide range of applications including:

Mobile devices
Printer
POS
Audio/video product
Hard disk drive
Set-top-box
Household appliance

Input:

Input voltage: 90 to 264V AC
Frequency: 47-50/60-63Hz
Input current: 0.4A (maximum) 100/240V AC
Inrush current:
- 50A maximum 100V AC at maximum load
- 60A maximum 240V AC at maximum load
Leakage current: 0.25mA maximum

Output:

5-24V DCX/0.6A-2.7A maximum, 13.5W maximum
Over-voltage protection
Over-current protection
at 110-200% of lo and auto-recovery
Electronic short-circuit protection
Operating temperature: 0-40°C free convection
Operating humidity 10-80% RH, non-condensing
Sea level non-operating temperature: -20-80°C

Safety standards:

IEC/EN 60950-1:2005 (2Nd Edition)+A1:2009
IEC/EN 60065:2001+A1:2005+A2:2010
GB4943-2001, GB8898-2001
K60950-1
AS/NZS.60950.1:2003 including Amdt 1/2/3,
AS/NZS.60065:2003inc, Amdt.1

Certificates and approvals: CB, GS, CE, UL, CCC, BEAB, FCC, PSE C-TICK, KC

Mobile devices

Printer

POS

Audio/video product

Hard disk drive

Set-top-box

Household appliance

Input voltage: 90 to 264V AC

Frequency: 47-50/60-63Hz

Input current: 0.4A (maximum) 100/240V AC

Inrush current:

50A maximum 100V AC at maximum load
60A maximum 240V AC at maximum load

Leakage current: 0.25mA maximum

50A maximum 100V AC at maximum load

60A maximum 240V AC at maximum load

5-24V DCX/0.6A-2.7A maximum, 13.5W maximum

Over-voltage protection

Over-current protection

at 110-200% of lo and auto-recovery

Electronic short-circuit protection

Operating temperature: 0-40°C free convection

Operating humidity 10-80% RH, non-condensing

Sea level non-operating temperature: -20-80°C

IEC/EN 60950-1:2005 (2Nd Edition)+A1:2009

IEC/EN 60065:2001+A1:2005+A2:2010

GB4943-2001, GB8898-2001

K60950-1

AS/NZS.60950.1:2003 including Amdt 1/2/3,

AS/NZS.60065:2003inc, Amdt.1
