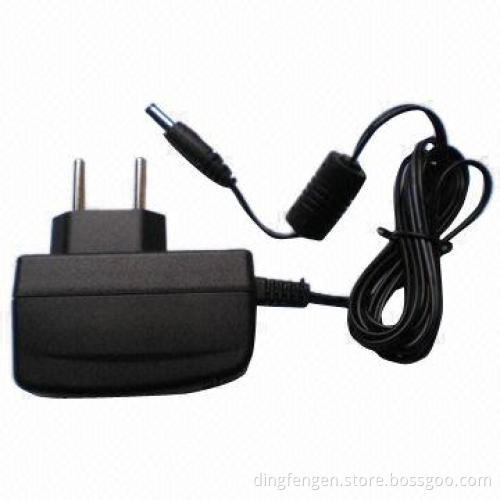

Slim Vertical Plug Power Adapter for Set Top Box EU Plug, En60065 & 60950

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Max output wattage: 12W

AC input voltage: 100V-240V (90-264Vac max)

AC frequency: 47-63Hz

DC output: 12V

DC output: 0 to 1A max

No load power consumption: <0.3W

Efficiency: 77.76% minimum

Ripple and noise: 120MVP-p

Working temperature: 0-40 degrees Max

Leakage current: <0.25mA

Short circuit protection

Over current protection

Over voltage protection

Open circuit protection

Humidity:

Hi-pot test:

Operating humidity: 20 to 85% RH

Storage humidity: 5 to 95% RH

Hi-pot: 3, 000V AC (primary-secondary)

MTBF (mean time between failures): 50, 000 hours at 25°C

Dimensions: 70 x 49.2 x 72.7mm (L x W x H) maximum

Safety: UL CUL, FCC, CE, GS, TUV- BS, CE

Safety standard: EN 60950-1 /EN60065

Meet CEC: Level V
