Wireless Indoor Smoke and Temperature Sensor
  • Wireless Indoor Smoke and Temperature Sensor
Wireless Indoor Smoke and Temperature Sensor

Wireless Indoor Smoke and Temperature Sensor

Get Latest Price
Payment Type:
T/T, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union or PayPal
Product Description
Product Description
  • Feature:

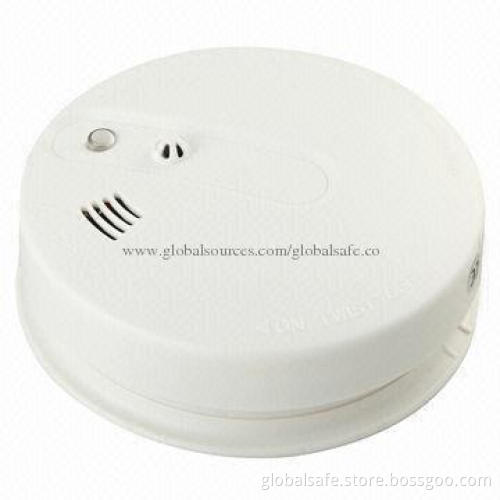

    • This product is a wireless photoelectric smoke detector (hereinafter called detector)
    • It uses special structure design and adopts MCU to analyze the photoelectric signal intelligently, with functions of dustproof, mothproof, anti-light interference and more
    • Therefore ensure the stability from designing
    • Meanwhile it has wireless network function for a variety of environmental needs, improved user’s perception of alarm signal
    • This product has good reaction on slow smoldering or burning
  • This product is a wireless photoelectric smoke detector (hereinafter called detector)
  • It uses special structure design and adopts MCU to analyze the photoelectric signal intelligently, with functions of dustproof, mothproof, anti-light interference and more
  • Therefore ensure the stability from designing
  • Meanwhile it has wireless network function for a variety of environmental needs, improved user’s perception of alarm signal
  • This product has good reaction on slow smoldering or burning
  • Technical parameters:
    • Operating voltage: 9V backup battery (6F22 carbon battery, DC type)
    • AC 220V/AC 110V with 9V backup battery (AC type)
    • Static current: ≤25uA (average value)
    • Alarm current: ≤35mA
    • Alarm indication: red LED flash
    • Power indication: green LED constant on (AC type)
    • Sound level: ≥85dB/m
    • Operating temperature: 10-50°C
    • Operating humidity: 5-95% RH
    • Sensitivity: 2.06%/ft
    • Sending distance: 100m (in the open area)
    • Detecting area: 80 square meters (Horizontal height: 6m-12m)
    • 60 square meters (Horizontal height: <6m)
    • Alarm output: sound and flash alarm
    • Size: 128 x 38mm deep
    • Execute criterion: EN14604 & EN5446-2
  • Operating voltage: 9V backup battery (6F22 carbon battery, DC type)
  • AC 220V/AC 110V with 9V backup battery (AC type)
  • Static current: ≤25uA (average value)
  • Alarm current: ≤35mA
  • Alarm indication: red LED flash
  • Power indication: green LED constant on (AC type)
  • Sound level: ≥85dB/m
  • Operating temperature: 10-50°C
  • Operating humidity: 5-95% RH
  • Sensitivity: 2.06%/ft
  • Sending distance: 100m (in the open area)
  • Detecting area: 80 square meters (Horizontal height: 6m-12m)
  • 60 square meters (Horizontal height: <6m)
  • Alarm output: sound and flash alarm
  • Size: 128 x 38mm deep
  • Execute criterion: EN14604 & EN5446-2
