2014 Hottest Sell 156x156mm 3BB High-efficiency Multi-crystalline Poly Solar Cell

2014 Hottest Sell 156x156mm 3BB High-efficiency Multi-crystalline Poly Solar Cell

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Brief description:

Taiwan brand, NSP/Motech
Efficiency: 15-19.55%
Stable performance
Long term stability and reliability
TUV certified (IEC 61215 ed.2, IEC 61730-1, IEC 61730-2 test standards)
High and stable conversion efficiency
High reliability with guaranteed ±3% output power tolerance
Built-in bypass diodes to minimize 50% less shading power drop
Built with anodized aluminum frames to provide structural strength
Innovative cable connectors for easy installation
Combination of high efficiency and attractive appearance

Physical characteristics:

Dimensions: 156x156mm
Diagonal: 220mm
Cell thickness: 180/200 ± 20μm

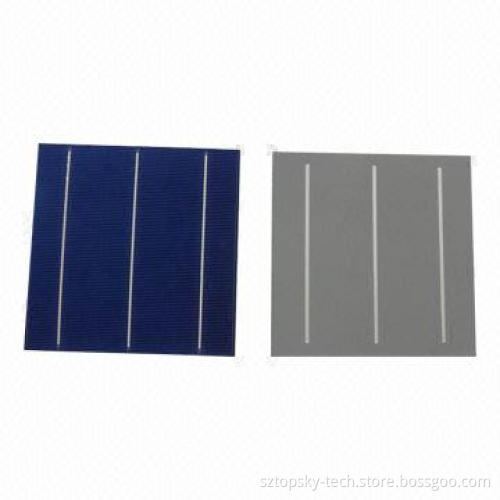

Front:
- Blue silicon nitride anti-reflective coatings
- 3x1.5mm silver busbar
Back:
- Full-surface aluminum back-surface field
- 3x3.0mm (silver/aluminum) discontinuous soldering pads

Electrical characteristics:

Eff-code: 1760, 1740, 1720, 1700, 1680, 1660, 1640
Eff: 17.60, 17.40, 17.20, 17.00, 16.80, 16.60, 16.40%
Pmax: 4.28, 4.23, 4.19, 4.14, 4.09, 4.04, 3.99W
Ipm: 8.127, 8.050, 7.988, 7.926, 7.862, 7.814, 7.750A
Isc: 8.681, 8.643, 8.602, 8.557, 8.506, 8.455, 8.412A
Vpm: 0.527, 0.526, 0.524, 0.522, 0.520, 0.517, 0.515V
Voc: 0.637, 0.635, 0.633, 0.631, 0.629, 0.626, 0.623V
Data under standard testing conditions (STC): 1,000W/m², AM1.5, 25°C

Features:

High conversion efficiencies resulting in superior power output performance
Outstanding power output even in low light or high temperature conditions
Optimized design for ease of soldering and lamination
Long-term stability, reliability and performance
Low breakage rate

Production and quality control:

Precision cell efficiency sorting procedures
Stringent criteria for color uniformity and appearance
Reverse current and shunt resistance screening

Taiwan brand, NSP/Motech

Efficiency: 15-19.55%

Stable performance

Long term stability and reliability

TUV certified (IEC 61215 ed.2, IEC 61730-1, IEC 61730-2 test standards)

High and stable conversion efficiency

High reliability with guaranteed ±3% output power tolerance

Built-in bypass diodes to minimize 50% less shading power drop

Built with anodized aluminum frames to provide structural strength

Innovative cable connectors for easy installation

Combination of high efficiency and attractive appearance

Dimensions: 156x156mm

Diagonal: 220mm

Cell thickness: 180/200 ± 20μm

Front:

Blue silicon nitride anti-reflective coatings
3x1.5mm silver busbar

Back:

Full-surface aluminum back-surface field
3x3.0mm (silver/aluminum) discontinuous soldering pads

Blue silicon nitride anti-reflective coatings

3x1.5mm silver busbar

Full-surface aluminum back-surface field

3x3.0mm (silver/aluminum) discontinuous soldering pads

Eff-code: 1760, 1740, 1720, 1700, 1680, 1660, 1640

Eff: 17.60, 17.40, 17.20, 17.00, 16.80, 16.60, 16.40%

Pmax: 4.28, 4.23, 4.19, 4.14, 4.09, 4.04, 3.99W

Ipm: 8.127, 8.050, 7.988, 7.926, 7.862, 7.814, 7.750A

Isc: 8.681, 8.643, 8.602, 8.557, 8.506, 8.455, 8.412A

Vpm: 0.527, 0.526, 0.524, 0.522, 0.520, 0.517, 0.515V

Voc: 0.637, 0.635, 0.633, 0.631, 0.629, 0.626, 0.623V

Data under standard testing conditions (STC): 1,000W/m², AM1.5, 25°C

High conversion efficiencies resulting in superior power output performance

Outstanding power output even in low light or high temperature conditions

Optimized design for ease of soldering and lamination

Long-term stability, reliability and performance

Low breakage rate

Precision cell efficiency sorting procedures

Stringent criteria for color uniformity and appearance

Reverse current and shunt resistance screening
