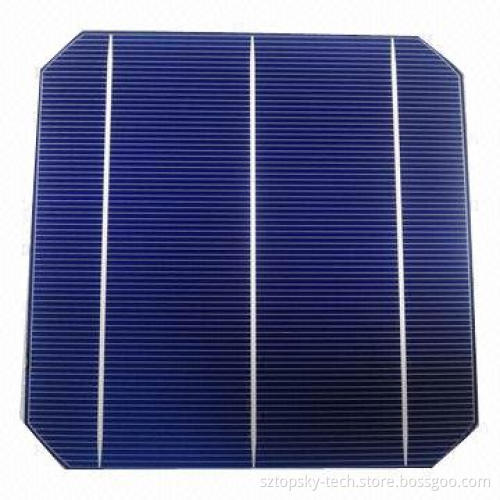

2014 Hottest Sell 156x156mm 3BB High-efficiency Mono-crystalline Solar Cell

2014 Hottest Sell 156x156mm 3BB High-efficiency Mono-crystalline Solar Cell

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Brief description:

Taiwan brand, NSP/Motech
Efficiency: 15-19.55%
Stable performance
Long term stability and reliability
TUV certified (IEC 61215 ed.2, IEC 61730-1, IEC 61730-2 test standards)
High and stable conversion efficiency
High reliability with guaranteed ±3% output power tolerance
Built-in bypass diodes to minimize 50% less shading power drop
Built with anodized aluminum frames to provide structural strength
Innovative cable connectors for easy installation
Combination of high efficiency and attractive appearance

Physical characteristics:

Dimensions: 156x156mm
Diagonal: 220mm
Cell thickness: 180/200 ± 20μm
Front:
- Anisotropically textured surface and dark silicon nitride anti-reflection coatings
- 3x1.5mm silver busbar
Back:
- Full-surface aluminum back-surface field
- 3x2.1mm (silver/aluminum) discontinuous soldering pads

Electrical characteristics:

Eff-code: 1940, 1930, 1920, 1910, 1900, 1890, 1880, 1860, 1840
Eff: 19.40, 19.30, 19.20, 19.10, 19.00, 18.90, 18.80, 18.60, 18.40%
Pmax: 4.636, 4.612, 4.588, 4.564, 4.540, 4.516, 4.492, 4.444, 4.397W
Ipm: 8.490, 8.462, 8.434, 8.405, 8.376, 8.332, 8.304, 8.231, 8.157A
Isc: 9.029, 9.001, 8.976, 8.953, 8.925, 8.897, 8.865, 8.842, 8.814A
Vpm: 0.546, 0.545, 0.544, 0.543, 0.542, 0.542, 0.541, 0.540, 0.539V
Voc: 0.645, 0.645, 0.644, 0.643, 0.642, 0.642, 0.641, 0.640, 0.638V
Data under standard testing conditions (STC): 1,000W/m², AM1.5, 25°C

Features:

High conversion efficiencies resulting in superior power output performance
Outstanding power output even in low light or high temperature conditions
Optimized design for ease of soldering and lamination
Long-term stability, reliability and performance
Low breakage rate

Taiwan brand, NSP/Motech

Efficiency: 15-19.55%

Stable performance

Long term stability and reliability

TUV certified (IEC 61215 ed.2, IEC 61730-1, IEC 61730-2 test standards)

High and stable conversion efficiency

High reliability with guaranteed ±3% output power tolerance

Built-in bypass diodes to minimize 50% less shading power drop

Built with anodized aluminum frames to provide structural strength

Innovative cable connectors for easy installation

Combination of high efficiency and attractive appearance

Dimensions: 156x156mm

Diagonal: 220mm

Cell thickness: 180/200 ± 20μm

Front:

Anisotropically textured surface and dark silicon nitride anti-reflection coatings
3x1.5mm silver busbar

Back:

Full-surface aluminum back-surface field
3x2.1mm (silver/aluminum) discontinuous soldering pads

Anisotropically textured surface and dark silicon nitride anti-reflection coatings

3x1.5mm silver busbar

Full-surface aluminum back-surface field

3x2.1mm (silver/aluminum) discontinuous soldering pads

Eff-code: 1940, 1930, 1920, 1910, 1900, 1890, 1880, 1860, 1840

Eff: 19.40, 19.30, 19.20, 19.10, 19.00, 18.90, 18.80, 18.60, 18.40%

Pmax: 4.636, 4.612, 4.588, 4.564, 4.540, 4.516, 4.492, 4.444, 4.397W

Ipm: 8.490, 8.462, 8.434, 8.405, 8.376, 8.332, 8.304, 8.231, 8.157A

Isc: 9.029, 9.001, 8.976, 8.953, 8.925, 8.897, 8.865, 8.842, 8.814A

Vpm: 0.546, 0.545, 0.544, 0.543, 0.542, 0.542, 0.541, 0.540, 0.539V

Voc: 0.645, 0.645, 0.644, 0.643, 0.642, 0.642, 0.641, 0.640, 0.638V

Data under standard testing conditions (STC): 1,000W/m², AM1.5, 25°C

High conversion efficiencies resulting in superior power output performance

Outstanding power output even in low light or high temperature conditions

Optimized design for ease of soldering and lamination

Long-term stability, reliability and performance

Low breakage rate
