2014 Hottest Selling 156x156mm 3BB High Efficiency Mono-crystalline Solar Cell

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Brief descriptions:

Taiwan brand, NSP/Motech

Efficiency: 15-19.55%

Stable performance, long term stability and reliability

TUV certified (IEC 61215 ed.2,IEC 61730-1,IEC 61730-2 teststandards)

High and stable conversion efficiency

High reliability with guaranteed +/-3% output powertolerance

Built-in bypass diodes to minimize 50% less shading powerdrop

Built with anodized aluminum frames to provide structuralstrength

Innovative cable connectors for easy installation

Combination of high efficiency and attractive appearance

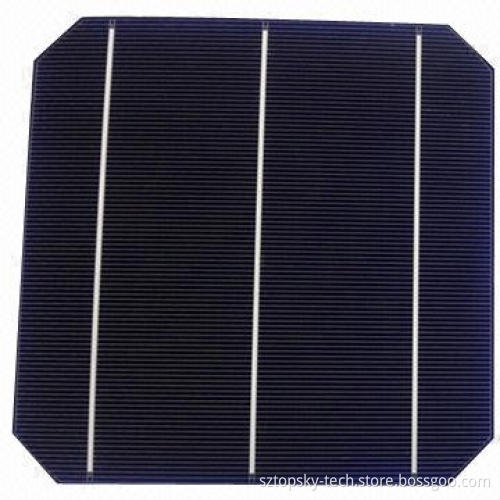

6-inches multi-crystalline silicon solar cell (3BB):

Physical characteristics:

Dimensions: 156x156 mm

Diagonal: 220mm

Cell thickness: 180/200, 20m

Front: blue silicon nitride anti-reflective coatings

3x1.5mm silver busbar

Back: full-surface aluminum back-surface field

3x3.0mm (silver/aluminum) discontinuous soldering pads

Products features:

High conversion efficiencies resulting in superior power outputperformance

Outstanding power output even in low light or high temperatureconditions

Optimized design for ease of soldering and lamination

Long-term stability, reliability and performance

Low breakage rate

Production and quality control:

Precision cell efficiency sorting procedures

Stringent criteria for color uniformity and appearance

Reverse current and shunt resistance screening

REACH-SVHC and ISO900 tests passed
