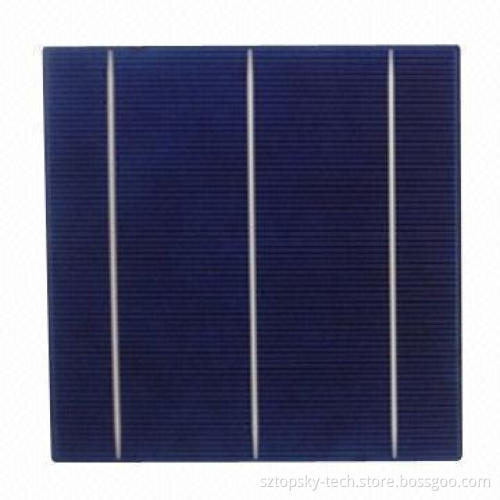

2014 Hot Sell 156x156mm 3BB High Efficiency Multicrystalline Poly Solar Cell
  • 2014 Hot Sell 156x156mm 3BB High Efficiency Multicrystalline Poly Solar Cell
  • 2014 Hot Sell 156x156mm 3BB High Efficiency Multicrystalline Poly Solar Cell
2014 Hot Sell 156x156mm 3BB High Efficiency Multicrystalline Poly Solar Cell
2014 Hot Sell 156x156mm 3BB High Efficiency Multicrystalline Poly Solar Cell

2014 Hot Sell 156x156mm 3BB High Efficiency Multicrystalline Poly Solar Cell

Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Description:
    • Efficiency: 15-19.55%
    • Stable performance
    • Long term stability and reliability
    • TUV-certified (IEC 61215 ed.2, IEC 61730-1 and IEC 61730-2 test standards)
    • High and stable conversion efficiency
    • High reliability with guaranteed ±3% output power tolerance
    • Built-in bypass diodes to minimize 50% less shading power drop
    • Built with anodized aluminum frames to provide structural strength
    • Innovative cable connectors for easy installation
    • Combination of high efficiency and attractive appearance
  • Physical characteristics:
    • Dimensions: 156x156mm
    • Diagonal: 220mm
    • Cell thickness: 180/200 ±20μm
    • Front: blue silicon nitride anti-reflective coatings
    • 3x1.5mm silver busbar
    • Back: full-surface aluminum back-surface field
    • 3x3.0mm (silver/aluminum) discontinuous soldering pads
  • Electrical characteristics:
    • Eff-code: 1760, 1740, 1720, 1700, 1680, 1660, 1640
    • Efficiency: 17.60, 17.40, 17.20, 17.00, 16.80, 16.60, 16.40%
    • Pmax: 4.28, 4.23, 4.19, 4.14, 4.09, 4.04, 3.99W
    • Ipm: 8.127, 8.050, 7.988, 7.926, 7.862, 7.814, 7.750A
    • Isc: 8.681, 8.643, 8.602, 8.557, 8.506, 8.455, 8.412A
    • Vpm: 0.527, 0.526, 0.524, 0.522, 0.520, 0.517, 0.515V
    • Voc: 0.637, 0.635, 0.633, 0.631, 0.629, 0.626, 0.623V
    • Data under standard testing conditions (STC): 1,000W/m², AM1.5, 25°C
  • Features:
    • High conversion efficiencies resulting in superior power output performance
    • Out standing power output even in low light or high temperature conditions
    • Optimized design for ease of soldering and lamination
    • Long-term stability, reliability and performance
    • Low breakage rate
  • Production and quality control:
    • Precision cell efficiency sorting procedures
    • Stringent criteria for color uniformity and appearance
    • Reverse current and shunt resistance screening
    • Certifications: REACH-SVHC test, ISO 9001, ISO 14001 and OHSAS 18001
  • Efficiency: 15-19.55%
  • Stable performance
  • Long term stability and reliability
  • TUV-certified (IEC 61215 ed.2, IEC 61730-1 and IEC 61730-2 test standards)
  • High and stable conversion efficiency
  • High reliability with guaranteed ±3% output power tolerance
  • Built-in bypass diodes to minimize 50% less shading power drop
  • Built with anodized aluminum frames to provide structural strength
  • Innovative cable connectors for easy installation
  • Combination of high efficiency and attractive appearance
  • Dimensions: 156x156mm
  • Diagonal: 220mm
  • Cell thickness: 180/200 ±20μm
  • Front: blue silicon nitride anti-reflective coatings
  • 3x1.5mm silver busbar
  • Back: full-surface aluminum back-surface field
  • 3x3.0mm (silver/aluminum) discontinuous soldering pads
  • Eff-code: 1760, 1740, 1720, 1700, 1680, 1660, 1640
  • Efficiency: 17.60, 17.40, 17.20, 17.00, 16.80, 16.60, 16.40%
  • Pmax: 4.28, 4.23, 4.19, 4.14, 4.09, 4.04, 3.99W
  • Ipm: 8.127, 8.050, 7.988, 7.926, 7.862, 7.814, 7.750A
  • Isc: 8.681, 8.643, 8.602, 8.557, 8.506, 8.455, 8.412A
  • Vpm: 0.527, 0.526, 0.524, 0.522, 0.520, 0.517, 0.515V
  • Voc: 0.637, 0.635, 0.633, 0.631, 0.629, 0.626, 0.623V
  • Data under standard testing conditions (STC): 1,000W/m², AM1.5, 25°C
  • High conversion efficiencies resulting in superior power output performance
  • Out standing power output even in low light or high temperature conditions
  • Optimized design for ease of soldering and lamination
  • Long-term stability, reliability and performance
  • Low breakage rate
  • Precision cell efficiency sorting procedures
  • Stringent criteria for color uniformity and appearance
  • Reverse current and shunt resistance screening
  • Certifications: REACH-SVHC test, ISO 9001, ISO 14001 and OHSAS 18001
