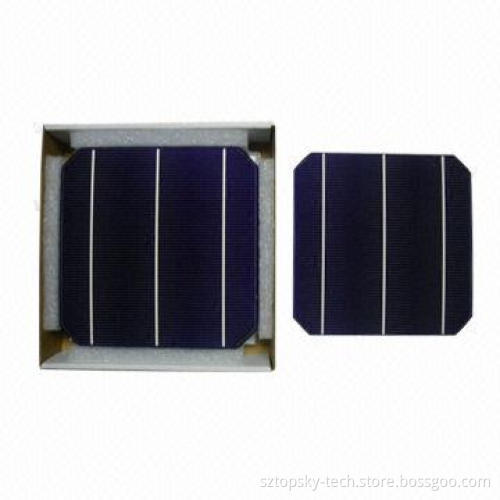

Hot-selling 3BB 6" High-efficiency Attractive Appearance Taiwan Brand Mono-crystalline Solar Cell
  • Hot-selling 3BB 6" High-efficiency Attractive Appearance Taiwan Brand Mono-crystalline Solar Cell
  • Hot-selling 3BB 6" High-efficiency Attractive Appearance Taiwan Brand Mono-crystalline Solar Cell
Hot-selling 3BB 6" High-efficiency Attractive Appearance Taiwan Brand Mono-crystalline Solar Cell
Hot-selling 3BB 6" High-efficiency Attractive Appearance Taiwan Brand Mono-crystalline Solar Cell

Hot-selling 3BB 6" High-efficiency Attractive Appearance Taiwan Brand Mono-crystalline Solar Cell

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Brief description:
    • Taiwan brand, NSP/Motech, efficiency: 15-19.55%
    • Stable performance, long term stability and reliability
    • TUV-certified (IEC 61215 ed.2, IEC 61730-1, IEC 61730-2 test standards
    • High and stable conversion efficiency
    • High reliability with guaranteed ±3% output power tolerance
    • Built-in bypass diodes to minimize 50% less shading power drop
    • Built with anodized aluminum frames to provide structural strength
    • Innovative cable connectors for easy installation
    • Combination of high efficiency and attractive appearance
  • Physical characteristics:
    • Dimension: 156x156mm
    • Diagonal: 220mm
    • Cell thickness: 180/200, ±20μm
    • Front: anisotropically texturized surface and dark silicone nitride anti-reflection coatings
    • 3x1.5mm silver busbar
    • Back: full-surface aluminum back-surface field
    • 3x2.1mm (silver/aluminum) discontinuous soldering pads
  • Electrical characteristics:
    • Eff-code: 1940, 1930, 1920, 1910, 1900, 1890, 1880, 1860, 1840
    • Eff: 19.40, 19.30, 19.20, 19.10, 19.00, 18.90, 18.80, 18.60, 18.40%
    • Pmax: 4.636, 4.612, 4.588, 4.564, 4.540, 4.516, 4.492, 4.444, 4.397W
    • Ipm: 8.490, 8.462, 8.434, 8.405, 8.376, 8.332, 8.304, 8.231, 8.157A
    • Isc: 9.029, 9.001, 8.976, 8.953, 8.925, 8.897, 8.865, 8.842, 8.814A
    • Vpm: 0.546, 0.545, 0.544, 0.543, 0.542, 0.542, 0.541, 0.540, 0.539V
    • Voc: 0.645, 0.645, 0.644, 0.643, 0.642, 0.642, 0.641, 0.640, 0.638V
    • Data under standard testing conditions (STC): 1,000W/M2, AM1.5, 25°C
  • Products features:
    • High conversion efficiencies resulting in superior power output performance
    • Outstanding power output even in low light or high temperature conditions
    • Optimized design for ease of soldering and lamination
    • Long-term stability, reliability and performance
    • Low breakage rate
  • Taiwan brand, NSP/Motech, efficiency: 15-19.55%
  • Stable performance, long term stability and reliability
  • TUV-certified (IEC 61215 ed.2, IEC 61730-1, IEC 61730-2 test standards
  • High and stable conversion efficiency
  • High reliability with guaranteed ±3% output power tolerance
  • Built-in bypass diodes to minimize 50% less shading power drop
  • Built with anodized aluminum frames to provide structural strength
  • Innovative cable connectors for easy installation
  • Combination of high efficiency and attractive appearance
  • Dimension: 156x156mm
  • Diagonal: 220mm
  • Cell thickness: 180/200, ±20μm
  • Front: anisotropically texturized surface and dark silicone nitride anti-reflection coatings
  • 3x1.5mm silver busbar
  • Back: full-surface aluminum back-surface field
  • 3x2.1mm (silver/aluminum) discontinuous soldering pads
  • Eff-code: 1940, 1930, 1920, 1910, 1900, 1890, 1880, 1860, 1840
  • Eff: 19.40, 19.30, 19.20, 19.10, 19.00, 18.90, 18.80, 18.60, 18.40%
  • Pmax: 4.636, 4.612, 4.588, 4.564, 4.540, 4.516, 4.492, 4.444, 4.397W
  • Ipm: 8.490, 8.462, 8.434, 8.405, 8.376, 8.332, 8.304, 8.231, 8.157A
  • Isc: 9.029, 9.001, 8.976, 8.953, 8.925, 8.897, 8.865, 8.842, 8.814A
  • Vpm: 0.546, 0.545, 0.544, 0.543, 0.542, 0.542, 0.541, 0.540, 0.539V
  • Voc: 0.645, 0.645, 0.644, 0.643, 0.642, 0.642, 0.641, 0.640, 0.638V
  • Data under standard testing conditions (STC): 1,000W/M2, AM1.5, 25°C
  • High conversion efficiencies resulting in superior power output performance
  • Outstanding power output even in low light or high temperature conditions
  • Optimized design for ease of soldering and lamination
  • Long-term stability, reliability and performance
  • Low breakage rate
