Hot Sale 6-inch 3BB High Efficiency Multi-crystalline Poly Solar Cell, Stable Performance

Hot Sale 6-inch 3BB High Efficiency Multi-crystalline Poly Solar Cell, Stable Performance

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Description:

Efficiency: 15-19.55%
Stable performance
Long term stability and reliability
Standards: TUV (IEC 61215 ED.2, IEC 61730-1 and IEC 61730-2 test)
High and stable conversion efficiency
High reliability with guaranteed ±3% output power tolerance
Built-in bypass diodes to minimize 50% less shading power drop
Built with anodized aluminum frames to provides structural strength
Innovative cable connectors for easy to install
Combination of high efficiency and attractive appearance

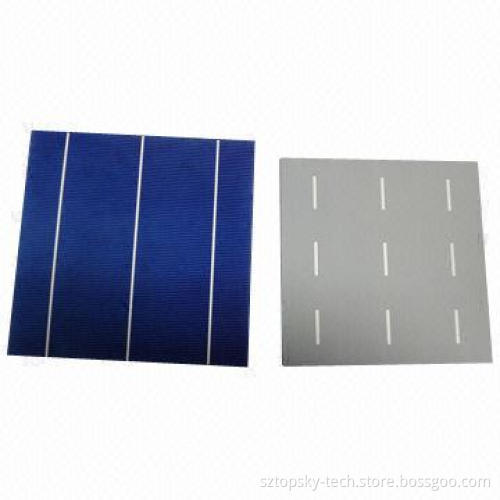

Physical characteristics:

Dimensions: 156x156mm
Diagonal: 220mm
Cell thickness: 180/200 ±20μm
Front: blue silicon nitride anti-reflective coating
3x1.5mm silver busbar
Back: full surface aluminum back surface field
3x3.0mm (silver/aluminum) discontinuous soldering pad

Electrical characteristics:

Eff-code: 1760, 1740, 1720, 1700, 1680, 1660 and 1640
Eff: 17.60, 17.40, 17.20, 17.00, 16.80, 16.60 and 16.40%
Pmax: 4.28, 4.23, 4.19, 4.14, 4.09, 4.04 and 3.99W
Ipm: 8.127, 8.050, 7.988, 7.926, 7.862, 7.814 and 7.750A
Isc: 8.681, 8.643, 8.602, 8.557, 8.506, 8.455 and 8.412A
Vpm: 0.527, 0.526, 0.524, 0.522, 0.520, 0.517 and 0.515V
Voc: 0.637, 0.635, 0.633, 0.631, 0.629, 0.626 and 0.623V
Data under standard testing conditions (STC): 1000W/m², AM1.5, 25°C

Features:

High conversion efficiency resulting in superior power output performance
Out standing power output even in low light or high temperature conditions
Optimized design for ease of soldering and lamination
Long term stability, reliability and performance
Low breakage rate

Production and quality control:

Precision cell efficiency sorting procedures
Stringent criteria for color uniformity and appearance
Reverse current and shunt-resistant screening
Certifications: REACH-SVHC test, ISO 9001, ISO 14001 and OHSAS 18001

Efficiency: 15-19.55%

Stable performance

Long term stability and reliability

Standards: TUV (IEC 61215 ED.2, IEC 61730-1 and IEC 61730-2 test)

High and stable conversion efficiency

High reliability with guaranteed ±3% output power tolerance

Built-in bypass diodes to minimize 50% less shading power drop

Built with anodized aluminum frames to provides structural strength

Innovative cable connectors for easy to install

Combination of high efficiency and attractive appearance

Dimensions: 156x156mm

Diagonal: 220mm

Cell thickness: 180/200 ±20μm

Front: blue silicon nitride anti-reflective coating

3x1.5mm silver busbar

Back: full surface aluminum back surface field

3x3.0mm (silver/aluminum) discontinuous soldering pad

Eff-code: 1760, 1740, 1720, 1700, 1680, 1660 and 1640

Eff: 17.60, 17.40, 17.20, 17.00, 16.80, 16.60 and 16.40%

Pmax: 4.28, 4.23, 4.19, 4.14, 4.09, 4.04 and 3.99W

Ipm: 8.127, 8.050, 7.988, 7.926, 7.862, 7.814 and 7.750A

Isc: 8.681, 8.643, 8.602, 8.557, 8.506, 8.455 and 8.412A

Vpm: 0.527, 0.526, 0.524, 0.522, 0.520, 0.517 and 0.515V

Voc: 0.637, 0.635, 0.633, 0.631, 0.629, 0.626 and 0.623V

Data under standard testing conditions (STC): 1000W/m², AM1.5, 25°C

High conversion efficiency resulting in superior power output performance

Out standing power output even in low light or high temperature conditions

Optimized design for ease of soldering and lamination

Long term stability, reliability and performance

Low breakage rate

Precision cell efficiency sorting procedures

Stringent criteria for color uniformity and appearance

Reverse current and shunt-resistant screening

Certifications: REACH-SVHC test, ISO 9001, ISO 14001 and OHSAS 18001
