1 to 8 VGA Extender, 100M/200M/300M Optional
  • 1 to 8 VGA Extender, 100M/200M/300M Optional
  • 1 to 8 VGA Extender, 100M/200M/300M Optional
  • 1 to 8 VGA Extender, 100M/200M/300M Optional
1 to 8 VGA Extender, 100M/200M/300M Optional
1 to 8 VGA Extender, 100M/200M/300M Optional
1 to 8 VGA Extender, 100M/200M/300M Optional

1 to 8 VGA Extender, 100M/200M/300M Optional

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description

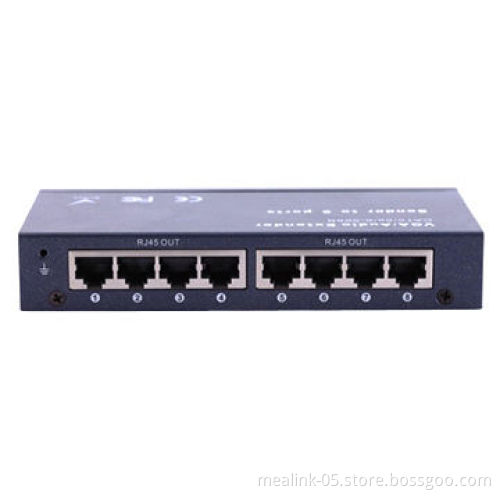

  • This product is 8 channels active VGA video and audio transmitter allowing remote transmission of high-resolution VGA video and high-fidelity audio over UTP cable
  • Features:
    • 350MHz signal transmission bandwidth
    • Transmission distance up to 150m working with UTP801AR-150
    • Transmission distance up to 300m working with UTP801AR-300
    • Supports VGA, SVGA, XGA, SXGA, WXGA ,UXGA and multi-sync monitors
    • High video resolution up to 1600x1200 pixels
    • Built-in surge and transient protection
    • Super interference rejection
  • Power properties:
    • Power supply: 12V DC (power adaptor)
    • Power consumption: <20W
    • Power switch: supported
  • Video properties:
    • Video input connector: 1* blue 15pin HD15 male
      • Impedance: 75Ω
    • Local video output connectors: 3* blue 15-pin HD15 female
      • Impedance: 75Ω
    • UTP cable connectors: 8* RJ-45
      • Impedance: 50Ω
    • Signal transmission band: >350MHz (-3dB)
    • Linear distortion: <3%
    • R,G,B signal distortion: <2ns
    • Common-mode interference rejection: 65dB (typical)
    • Synchronous signal: 0-5V, TTL PWL
    • Synchronous signal band: 1K-200KHz
    • Synchronous signal delay: <15ns
    • DDC2: virtual DDC
  • Audio properties:
    • Connectors: 2* 3.5mm audio jack
    • Input impedance: 10kΩ
    • Output impedance: 600Ω
    • Transmission band: 10-20KHz
  • Protections:
    • Lightning protection: 1,000V, 10/700us
    • IEC61000-4-5
    • ESD
    • Contact discharge: 2,000V
    • Air discharge: 4,000V
    • IEC61000-4-2
  • Physical properties:
    • Dimensions (LWH): 575*275*90mm
    • Housing material: metal
    • Color: blue
  • Environmental:
    • NW: 0.6 kg
    • Operating temperature: 0°C-55°C
    • Relative humidity (non-condensing): 0-95%
    • Storage temperature: -20°C-80°C
  • Accessories
    • VGA cable (F-M)
      • Length: 1.2m
    • Audio cable (M-M)
      • Length: 1.5m
    • Standard power cable
      • Length: 1.2m
    • Casing gross weight: 2.57kg
    • Casing volume (LWH): 575*275*90mm
  • 350MHz signal transmission bandwidth
  • Transmission distance up to 150m working with UTP801AR-150
  • Transmission distance up to 300m working with UTP801AR-300
  • Supports VGA, SVGA, XGA, SXGA, WXGA ,UXGA and multi-sync monitors
  • High video resolution up to 1600x1200 pixels
  • Built-in surge and transient protection
  • Super interference rejection
  • Power supply: 12V DC (power adaptor)
  • Power consumption: <20W
  • Power switch: supported
  • Video input connector: 1* blue 15pin HD15 male
    • Impedance: 75Ω
  • Local video output connectors: 3* blue 15-pin HD15 female
    • Impedance: 75Ω
  • UTP cable connectors: 8* RJ-45
    • Impedance: 50Ω
  • Signal transmission band: >350MHz (-3dB)
  • Linear distortion: <3%
  • R,G,B signal distortion: <2ns
  • Common-mode interference rejection: 65dB (typical)
  • Synchronous signal: 0-5V, TTL PWL
  • Synchronous signal band: 1K-200KHz
  • Synchronous signal delay: <15ns
  • DDC2: virtual DDC
  • Impedance: 75Ω
  • Impedance: 75Ω
  • Impedance: 50Ω
  • Connectors: 2* 3.5mm audio jack
  • Input impedance: 10kΩ
  • Output impedance: 600Ω
  • Transmission band: 10-20KHz
  • Lightning protection: 1,000V, 10/700us
  • IEC61000-4-5
  • ESD
  • Contact discharge: 2,000V
  • Air discharge: 4,000V
  • IEC61000-4-2
  • Dimensions (LWH): 575*275*90mm
  • Housing material: metal
  • Color: blue
  • NW: 0.6 kg
  • Operating temperature: 0°C-55°C
  • Relative humidity (non-condensing): 0-95%
  • Storage temperature: -20°C-80°C
  • VGA cable (F-M)
    • Length: 1.2m
  • Audio cable (M-M)
    • Length: 1.5m
  • Standard power cable
    • Length: 1.2m
  • Casing gross weight: 2.57kg
  • Casing volume (LWH): 575*275*90mm
  • Length: 1.2m
  • Length: 1.5m
  • Length: 1.2m
