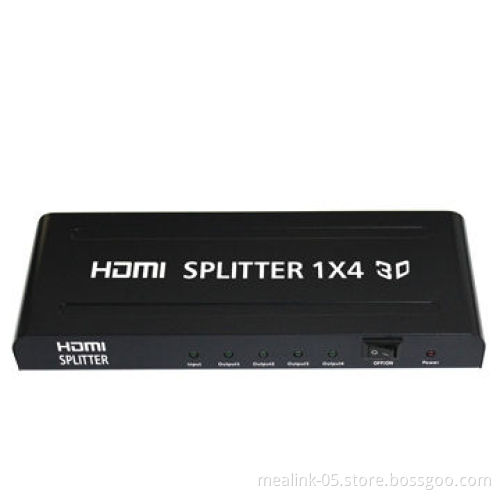

Black 3D 1X4 HDMI SplitterNew
  • Black 3D 1X4 HDMI SplitterNew
  • Black 3D 1X4 HDMI SplitterNew
  • Black 3D 1X4 HDMI SplitterNew
Black 3D 1X4 HDMI SplitterNew
Black 3D 1X4 HDMI SplitterNew
Black 3D 1X4 HDMI SplitterNew

Black 3D 1X4 HDMI SplitterNew

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • The 1x4 HDMI Splitter use a single HDMI source, accessing to multiple HDMI sinks
  • The splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors
  • The splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal
  • Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments
  • Features:
    • One HDMI input signal split to four HDMI sink devices
    • Support 3D
    • Support CEC
    • Support deep color 30bit, 36bit
    • Support blue-ray 24/50/60fs/HD-DVD/xvYCC
    • Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
    • Support signal retiming
    • Support input up to 15metres AWG26 HDMI standard cable length, output up to 25metres AWG26 cable length
    • No loss of quality
    • Installs in minutes
    • Need DC5V/1A power supply
  • Connecting and operating:
    • Connect one cable from HDMI source devices into HDMI Splitter input
    • Connect one cable from each display (monitor or projector) into the HDMI splitter outputs
    • Connect 5V power supply to the HDMI 1x4 splitter
  • Specifications:
    • HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
    • Support video color format: 24bit/deep color 30bit, 36bit
    • Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
    • Max bandwidth: 225MHz
    • Max baud rate: 6.75Gbps
    • Input/output TMDS signal: 0.5~1.5Volts p-p (TTL)
    • Input/output DDC signal: 5Volts p-p (TTL)
    • Input cable distance: ≤15m AWG26 HDMI standard cable
  • One HDMI input signal split to four HDMI sink devices
  • Support 3D
  • Support CEC
  • Support deep color 30bit, 36bit
  • Support blue-ray 24/50/60fs/HD-DVD/xvYCC
  • Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Support signal retiming
  • Support input up to 15metres AWG26 HDMI standard cable length, output up to 25metres AWG26 cable length
  • No loss of quality
  • Installs in minutes
  • Need DC5V/1A power supply
  • Connect one cable from HDMI source devices into HDMI Splitter input
  • Connect one cable from each display (monitor or projector) into the HDMI splitter outputs
  • Connect 5V power supply to the HDMI 1x4 splitter
  • HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Support video color format: 24bit/deep color 30bit, 36bit
  • Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Max bandwidth: 225MHz
  • Max baud rate: 6.75Gbps
  • Input/output TMDS signal: 0.5~1.5Volts p-p (TTL)
  • Input/output DDC signal: 5Volts p-p (TTL)
  • Input cable distance: ≤15m AWG26 HDMI standard cable
