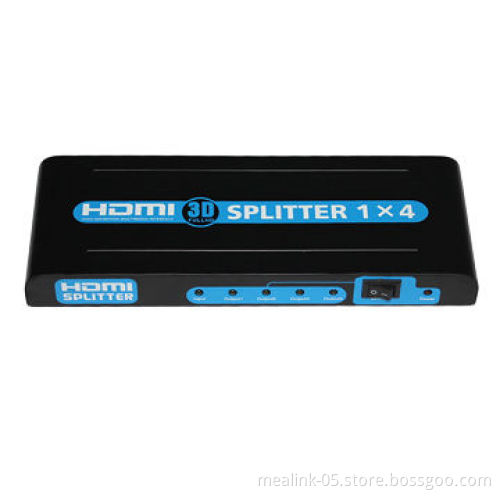

New Design 1X4 HDMI SplitterNew
  • New Design 1X4 HDMI SplitterNew
  • New Design 1X4 HDMI SplitterNew
  • New Design 1X4 HDMI SplitterNew
New Design 1X4 HDMI SplitterNew
New Design 1X4 HDMI SplitterNew
New Design 1X4 HDMI SplitterNew

New Design 1X4 HDMI SplitterNew

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • The 1x4 HDMI Splitter use a single HDMI source, accessing to multiple HDMI sinks
  • Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors
  • Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal
  • Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
  • Features:
    • One HDMI input signal split to four HDMI sink devices
    • Supports 3D
    • Supports CEC
    • Supports deep color 30bit, 36bit
    • Supports blue-ray 24/50/60fs/HD-DVD/xvYCC
    • Digital audio format, as DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
    • Supports signal retiming
    • Supports input up to 15 meters AWG26 HDMI standard cable length, output up to 25 meters AWG26 cable length
    • No loss of quality
    • Installs in minutes
    • Needs DC 5V/1A power supply
  • Connecting and operating:
    • Connect one cable from HDMI source devices into HDMI splitter input
    • Connects one cable from each display (monitor or projector) into the HDMI splitter output
    • Connects 5V power supply to the HDMI 1x4 splitter
  • Specifications:
    • HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
    • Supports video color format: 24bit/deep color 30bit, 36bit
    • Supports audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
    • Max bandwidth: 225MHz
    • Max baud rate: 6.75Gbps
    • Input/output TMDS signal: 0.5~1.5 volts p-p (TTL)
    • Input/output DDC signal: 5 volts p-p (TTL)
    • Input cable distance: ≤ 15m AWG26 HDMI standard cable
    • Output cable distance: ≤ 25m AWG26 HDMI standard cable
    • Max working current: 600mA
    • Power adapter format:
      • Input: AC (50Hz, 60Hz) 100-240V
      • Output: DC 5V/1A
    • Operating temperature range: (-15 to +55)
    • Operating humidity range: 5 to 90%RH (no condensation)
    • Dimension (L x W x H): 115 x 61 x 25(mm)
    • Weight: 200g
    • Output 1- output 4: HDMI output interface
    • Input: HDMI input interface
    • DC 5V: 5V DC-DC power interface
  • One HDMI input signal split to four HDMI sink devices
  • Supports 3D
  • Supports CEC
  • Supports deep color 30bit, 36bit
  • Supports blue-ray 24/50/60fs/HD-DVD/xvYCC
  • Digital audio format, as DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Supports signal retiming
  • Supports input up to 15 meters AWG26 HDMI standard cable length, output up to 25 meters AWG26 cable length
  • No loss of quality
  • Installs in minutes
  • Needs DC 5V/1A power supply
  • Connect one cable from HDMI source devices into HDMI splitter input
  • Connects one cable from each display (monitor or projector) into the HDMI splitter output
  • Connects 5V power supply to the HDMI 1x4 splitter
  • HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Supports video color format: 24bit/deep color 30bit, 36bit
  • Supports audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Max bandwidth: 225MHz
  • Max baud rate: 6.75Gbps
  • Input/output TMDS signal: 0.5~1.5 volts p-p (TTL)
  • Input/output DDC signal: 5 volts p-p (TTL)
  • Input cable distance: ≤ 15m AWG26 HDMI standard cable
  • Output cable distance: ≤ 25m AWG26 HDMI standard cable
  • Max working current: 600mA
  • Power adapter format:
    • Input: AC (50Hz, 60Hz) 100-240V
    • Output: DC 5V/1A
  • Operating temperature range: (-15 to +55)
  • Operating humidity range: 5 to 90%RH (no condensation)
  • Dimension (L x W x H): 115 x 61 x 25(mm)
  • Weight: 200g
  • Output 1- output 4: HDMI output interface
  • Input: HDMI input interface
  • DC 5V: 5V DC-DC power interface
  • Input: AC (50Hz, 60Hz) 100-240V
  • Output: DC 5V/1A
