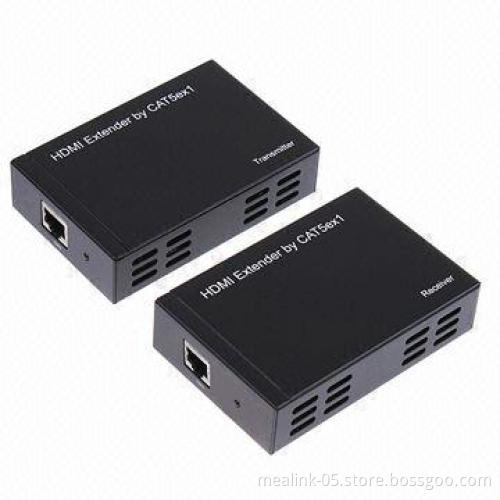

120m HDMI Extender, Over One Cat5e/CAT6 (Over LAN), 1,080P with IR, Manufactured by Mealink

120m HDMI Extender, Over One Cat5e/CAT6 (Over LAN), 1,080P with IR, Manufactured by Mealink

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Instead of using expensive HDMI cables, your existing CAT6cables/sockets can be utilized to perform advanced functions liketransferring deep color (12 bits/color) video and digital audiowith a bandwidth up to 225MHz

HDMI extender and receiver, over one CAT6 extender is yoursubstantial HDMI extender tool

HDMI extender over one CAT6 also support IR returnfunction

Re-transmitting, so you can control the source which is 120meters outside using the HDMI extender

HDMI extender also support extension by cat5e/6 over router orLAN switcher

Via connecting the transmitter to input port of router andconnect several receivers to output port of router, you can fulfillthe one source to multiple TVs/displays and each level can be up to100m

Features:

5-12V DC wide power supply
HDMI 1.3, HDCP 1.1 and DVI1.1 compliant
HDMI definition 640 x 480, 720 x 576, 800 x 600, 1,024 x 600,1,024 x 768, 1,152 x 864, 1,280 x 600, 1,280 x 720, 1,280 x 768,1,280 x 800, 1,280 x 960, 1,280 x 1,024,
1,440 x 1,050, 1,440 x 900, 1,600 x 900, 1,680 x 1,050, 1,920 x1,080 pixels
Support deep color up to 12 bits/color
Support IR re-transmitting
Uses one CAT-6 cable for data/DDC transmission
Equalizes and recovers incoming TMDS data beforere-transmitting it in optimal quality regardless of the incomingsignal quality
Cable testing showed that with 1,080P resolution the HDMI inputsource can be 20m away
When transmitting a signal in 1,080P resolution the CAT6operating distance is 100m

Specifications:

Frequency bandwidth: 2.25Gbps (single link)
HDMI transmitter input/output ports: 1 x HDMI female port/1 xCAT6
HDMI receiver input/output ports: 1 x HDMI female port/1 xCAT6
Power supply: 5-12V DC
ESD protection human body model: ± 8kV (air-gapdischarge), ± 4kV (contact discharge)
Dimensions (W x D x H): 65 x 100 x 25mm

5-12V DC wide power supply

HDMI 1.3, HDCP 1.1 and DVI1.1 compliant

HDMI definition 640 x 480, 720 x 576, 800 x 600, 1,024 x 600,1,024 x 768, 1,152 x 864, 1,280 x 600, 1,280 x 720, 1,280 x 768,1,280 x 800, 1,280 x 960, 1,280 x 1,024,

1,440 x 1,050, 1,440 x 900, 1,600 x 900, 1,680 x 1,050, 1,920 x1,080 pixels

Support deep color up to 12 bits/color

Support IR re-transmitting

Uses one CAT-6 cable for data/DDC transmission

Equalizes and recovers incoming TMDS data beforere-transmitting it in optimal quality regardless of the incomingsignal quality

Cable testing showed that with 1,080P resolution the HDMI inputsource can be 20m away

When transmitting a signal in 1,080P resolution the CAT6operating distance is 100m

Frequency bandwidth: 2.25Gbps (single link)

HDMI transmitter input/output ports: 1 x HDMI female port/1 xCAT6

HDMI receiver input/output ports: 1 x HDMI female port/1 xCAT6

Power supply: 5-12V DC

ESD protection human body model: ± 8kV (air-gapdischarge), ± 4kV (contact discharge)
