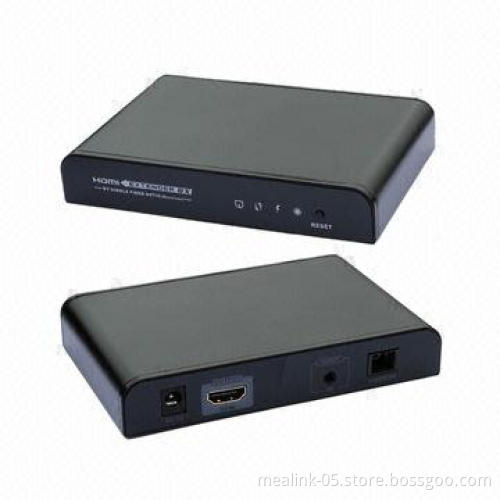

20km HDMI Extender by Optical Fiber with IR, 1,310nm Center Wavelength

20km HDMI Extender by Optical Fiber with IR, 1,310nm Center Wavelength

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Description:

Featuring HDMI video resolution up to WUXGA 1,920 x 1,200P andHDTV video resolution up to 1,080 pixels

The HDMI fiber-optic extender also transports digital audioalong with the HDMI

The HDMI optical fiber extenders consists of an all fiberconnection eliminating the need for any copper connections betweenthe transmitting and receiving devices

Designed to not only transport the HD video and audio, but alsosupports the transmission of the display data channel (DDC) andhigh-definition copy protection (HDCP) over the same opticalfiber

It is with IR function, which enables users to control thevideo source on the RX side

Features:

HDMI: HDMI1.3 version, compliant with HDCP

Follow up standard TCP/IP protocol

Transmit by single fiber optic cable up to 20km at 1,080pixels

Apply the best video decode technology: M-JPEG

HDMI input: 480i at 60Hz, 480P at 60Hz, 576i at 50Hz, 576P at50Hz, 720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 50/60Hz

HDMI output: 480P at 60Hz, 576P at 50Hz, 720P at 50/60Hz,1,080P at 50/60Hz

Center wavelength: 1,310nm

Interface: SC

Fiber type: single module 0-20km

Chain loss: d14dB
