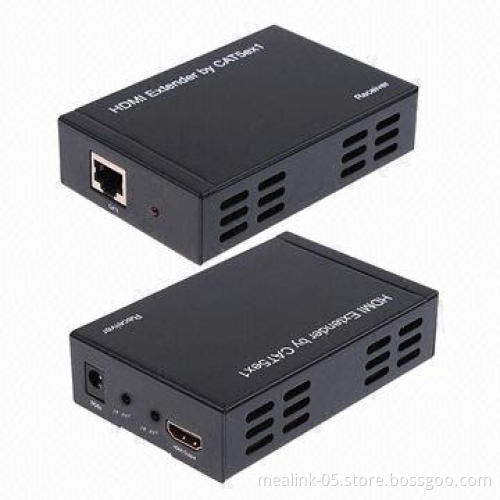

100m HDMI Extender, Over LAN by One CAT5E/CAT6, with IR Return Function

100m HDMI Extender, Over LAN by One CAT5E/CAT6, with IR Return Function

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Introduction:

The HDMI extender over ONE CAT 6 is a tool for extending yourHDMI signal over long distances to a compatible display
Instead of using expensive HDMI cables, your existing CAT 6cables/sockets can be utilized to perform advanced functions liketransferring deep color (12 bits/color) video and digital audio,with a bandwidth up to 225MHz
The HDMI extender and receiver, over one CAT6 extender is yoursubstantial HDMI extender tool
The HDMI extender over ONE CAT 6 also support IR
re-transmitting, so you can control the Source which is 100meters outside using the HDMI extender

Features:

5-12V DC wide power supply
HDMI 1.3, HDCP 1.1 and DVI1.1 compliant
HDMI definition: 640 x 480, 720 x 576, 800 x 600, 1,024 x 600,1,024 x 768, 1,152 x 864, 1,280 x 600, 1,280 x 720, 1,280 x 768,1,280 x 800, 1,280 x 960, 1,280 x 1,024, 1,440 x 1,050, 1,440 x900, 1,600 x 900, 1,680 x 1,050, 1,920 x 1,080
Support deep color up to 12 bits/color
Support IR re-transmitting
Uses one CAT-6 cable for data/DDC transmission
Equalizes and recovers incoming TMDS data beforere-transmitting it in optimal quality regardless of the incomingsignal quality
Cable testing showed that with 1080p resolution the HDMI inputsource can be 20m away
When transmitting a signal in 1080p resolution the CAT6operating distance is 100m

Packaging:

HDMI extender transmitter: 1pc
HDMI extender receiver: 1pc
IR transmitter: 1pc
IR receiver: 1pc
5V DC power supply adapter: 2pcs
Operation manual: 1pc

The HDMI extender over ONE CAT 6 is a tool for extending yourHDMI signal over long distances to a compatible display

Instead of using expensive HDMI cables, your existing CAT 6cables/sockets can be utilized to perform advanced functions liketransferring deep color (12 bits/color) video and digital audio,with a bandwidth up to 225MHz

The HDMI extender and receiver, over one CAT6 extender is yoursubstantial HDMI extender tool

The HDMI extender over ONE CAT 6 also support IR

re-transmitting, so you can control the Source which is 100meters outside using the HDMI extender

5-12V DC wide power supply

HDMI 1.3, HDCP 1.1 and DVI1.1 compliant

HDMI definition: 640 x 480, 720 x 576, 800 x 600, 1,024 x 600,1,024 x 768, 1,152 x 864, 1,280 x 600, 1,280 x 720, 1,280 x 768,1,280 x 800, 1,280 x 960, 1,280 x 1,024, 1,440 x 1,050, 1,440 x900, 1,600 x 900, 1,680 x 1,050, 1,920 x 1,080

Support deep color up to 12 bits/color

Support IR re-transmitting

Uses one CAT-6 cable for data/DDC transmission

Equalizes and recovers incoming TMDS data beforere-transmitting it in optimal quality regardless of the incomingsignal quality

Cable testing showed that with 1080p resolution the HDMI inputsource can be 20m away

When transmitting a signal in 1080p resolution the CAT6operating distance is 100m

HDMI extender transmitter: 1pc

HDMI extender receiver: 1pc

IR transmitter: 1pc

IR receiver: 1pc

5V DC power supply adapter: 2pcs

Operation manual: 1pc
