50M HDMI Extender Over Single UTP Cable with Dual IR Control

50M HDMI Extender Over Single UTP Cable with Dual IR Control

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Introduction:

The HDMI extender over single Cat5e/6 with Bi-directional IR extends high definition video and audio signals and IR, at a distance of up to 164ft/50m over a single Cat5e/6 cable
Features EDID management, which allows and encourages source and display “handshake” for seamless integration
With only one cost effective Cat5e/6 cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances
Deep color video, DTS-HD or Dolby True HD audio is supported and compatible with the extender
In addition, the extender is also equipped with bi-directional IR pass-through which allows for source or display control

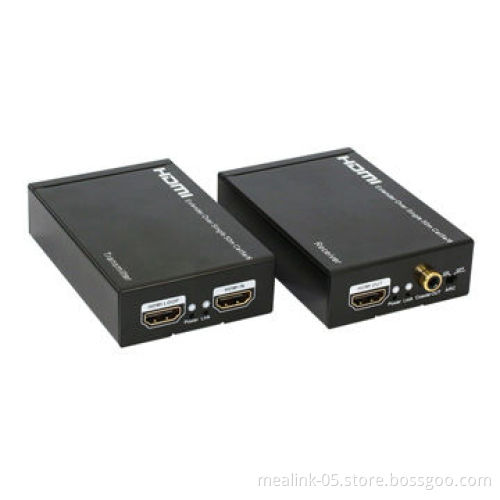

The extender includes two units: transmitting unit and receiving unit
The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable
The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals
The extender offers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application

Features:

Allows HDMI audio/video and IR signals to be transmitted over a single Cat5e/6 cable
Bi-directional IR system allowing for control of source or display (IR accessories included)
2D/3D EDID management
Transmission range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable
Works with HDMI and HDCP compliant devices
Supports up to 1080p high definition resolution
Compact design for an easy and flexible installation

Specifications:

Video bandwidth: Single-link 165Mhz [ 4.95Gbps]
Video supported: 480i/480p/720p/1080i/1080p @60
Audio supported: Surround sound (up to 7.1 ch) or stereo digital audio
Transmission range: HD [1080p 24-bit color] – up to 50m [164ft]
Input TMDS signal: 3.3 volts
Input DDC signal: 5.0 volts/P-P
ESD protection: Human body model: +/- 8 kV (air-gap discharge) +/- 4 kV (contact discharge)
PCB stack-up: 4 layouts
HDMI connector: Type A 19 pin female
RJ-45 connector: WE/SS 8P8C
3.5mm connector: (TX and RX) IR receiver/IR blaster

Mechanical specs:

Housing: metal enclosure
Power supply: (2) 5V1A DC
Power consumption: 2.5 watts (TX), 1.2 watts (RX)
Operation temperatures: 32~104°F
Storage temperatures: -4 ~140°F
