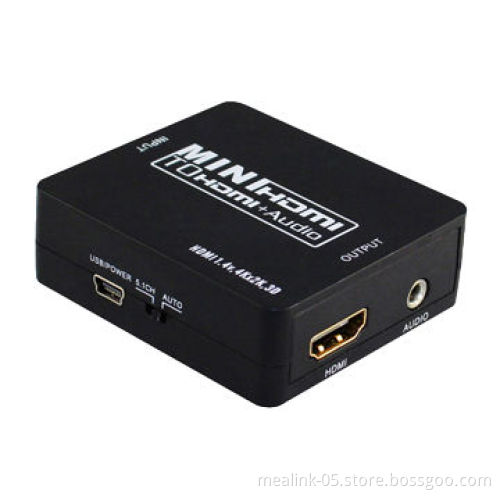

Mini HDMI 1.4 to HDMI & Audio RepeaterNew
  • Mini HDMI 1.4 to HDMI & Audio RepeaterNew
  • Mini HDMI 1.4 to HDMI & Audio RepeaterNew
Mini HDMI 1.4 to HDMI & Audio RepeaterNew
Mini HDMI 1.4 to HDMI & Audio RepeaterNew

Mini HDMI 1.4 to HDMI & Audio RepeaterNew

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  •  Introductions:
    • It increases the analog stereo and digital toslink audio output
    • On basis of the HDMI signal transmission. The audio signal can be easily connected to the earphones or digital audio power amplifier
  • Features:
    • No need to install drivers, portable, flexible, plug and play
    • Supports analog stereo and digital toslink audio output
    • Compliant with HDMI 1.4a, CTS 1.4a, DVI 1.0 & VESA Display: Port 1.1a standards
    • Supports: 3D video & 4Kx2K, 8, 10, 12 & 16 bits per color depth
    • Extends: 4x2K video up to 40 meter transmission distance
  • Package:
    • MINI HDMI1.4 to HDMI & audio repeater
    • USB cable (standard to mini)
    • Operation manual
  • Specifications:
    • Frequency Bandwidth: 2.97Gbps
    • Input ports: 1 x HDMI female ports
    • Output port: 1 x HDMI female port, 1x Toslink, 1x earphone
    • HDMI audio output: PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD & DTS-HD
    • Power supply: USB power
  • ESD protection:
    • Human body model: ± 8kV (air-gap discharge), ± 4kV (contact discharge)
    • Dimensions (mm): 60(D) x55 (W) x 20(H)
    • Weight (g): 40
    • Operating temperatures: 0- 40˚C/32- 104˚F
    • Storage temperatures:  -20- 60˚C/4-140˚F
  • Operation controls and functions:
    • SPIDF out: This slot is where you connect to the amplifier with optical fiber cable
    • HDMI input: These slot is where you connect the HDMI source output from DVD, PS3, set-top box and note book
    • Power LED: This red LED illuminate when the device is connected with power supply
    • USB power: Connect the USB cable to source USB port for power in
    • EDID switch: Press this SW to select the 5.1CH, auto audio output mode
    • HDMI out: This slot is where you connect the HDTV or monitor with HDMI cable for input source display
    • Audio out: This slot is where you connect to the speaker with 3.5mm earphone cable
  • It increases the analog stereo and digital toslink audio output
  • On basis of the HDMI signal transmission. The audio signal can be easily connected to the earphones or digital audio power amplifier
  • No need to install drivers, portable, flexible, plug and play
  • Supports analog stereo and digital toslink audio output
  • Compliant with HDMI 1.4a, CTS 1.4a, DVI 1.0 & VESA Display: Port 1.1a standards
  • Supports: 3D video & 4Kx2K, 8, 10, 12 & 16 bits per color depth
  • Extends: 4x2K video up to 40 meter transmission distance
  • MINI HDMI1.4 to HDMI & audio repeater
  • USB cable (standard to mini)
  • Operation manual
  • Frequency Bandwidth: 2.97Gbps
  • Input ports: 1 x HDMI female ports
  • Output port: 1 x HDMI female port, 1x Toslink, 1x earphone
  • HDMI audio output: PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD & DTS-HD
  • Power supply: USB power
  • Human body model: ± 8kV (air-gap discharge), ± 4kV (contact discharge)
  • Dimensions (mm): 60(D) x55 (W) x 20(H)
  • Weight (g): 40
  • Operating temperatures: 0- 40˚C/32- 104˚F
  • Storage temperatures:  -20- 60˚C/4-140˚F
  • SPIDF out: This slot is where you connect to the amplifier with optical fiber cable
  • HDMI input: These slot is where you connect the HDMI source output from DVD, PS3, set-top box and note book
  • Power LED: This red LED illuminate when the device is connected with power supply
  • USB power: Connect the USB cable to source USB port for power in
  • EDID switch: Press this SW to select the 5.1CH, auto audio output mode
  • HDMI out: This slot is where you connect the HDTV or monitor with HDMI cable for input source display
  • Audio out: This slot is where you connect to the speaker with 3.5mm earphone cable
