100m HDMI ExtenderNew

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Introduction:

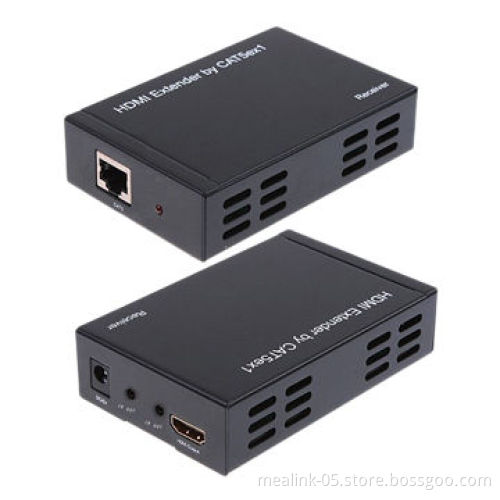

The HDMI Extender over ONE CAT 6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Extender and receiver, over one CAT6 extender is your substantial HDMI extender tool. The HDMI Extender over one CAT 6 also support IR
re-transmitting, so you can control the Source which is 100 meters outside using the HDMI Extender

Features:

DC 5V~12V wide power supply
HDMI 1.3, HDCP 1.1 and DVI1.1 compliant
HDMI definition 640X480，720X576， 800X600， 1024X600， 1024X768，1152X864，1280X600，
1280X720， 1280X768，1280X800，1280X960，1280X1024， 1440X1050，1440x900， 1600x900，1680x1050， 1920x1080
Support deep color up to 12 bits/color
Support IR re-transmitting
Uses one CAT-6 cable for data/DDC transmission
Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality
Cable testing showed that with 1080p resolution the HDMI input source can be 20 meters away
When transmitting a signal in 1080p resolution the CAT6 operating distance is 100 meters

Package:

HDMI extender transmitter: 1pc
HDMI extender receiver: 1pc
IR transmitter: 1pc
IR receiver: 1pc
5V DC power supply adaptor: 2pcs
Operation manual: 1pc

Specifications:

Frequency bandwidth 2.25Gbps (single link)
HDMI transmitter input/output ports, 1x HDMI Female port/1 x CAT6
HDMI receiver Input/output ports, 1 x HDMI Female port/1 x CAT6
Power supply: DC 5V~12V
ESD protection human body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Dimensions (mm) 65(W) X 100 (D) X 25 (H)
Chassis material: Iron
Open

The HDMI Extender over ONE CAT 6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Extender and receiver, over one CAT6 extender is your substantial HDMI extender tool. The HDMI Extender over one CAT 6 also support IR

re-transmitting, so you can control the Source which is 100 meters outside using the HDMI Extender

DC 5V~12V wide power supply

HDMI 1.3, HDCP 1.1 and DVI1.1 compliant

HDMI definition 640X480，720X576， 800X600， 1024X600， 1024X768，1152X864，1280X600，

1280X720， 1280X768，1280X800，1280X960，1280X1024， 1440X1050，1440x900， 1600x900，1680x1050， 1920x1080

Support deep color up to 12 bits/color

Support IR re-transmitting

Uses one CAT-6 cable for data/DDC transmission

Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality

Cable testing showed that with 1080p resolution the HDMI input source can be 20 meters away

When transmitting a signal in 1080p resolution the CAT6 operating distance is 100 meters

HDMI extender transmitter: 1pc
