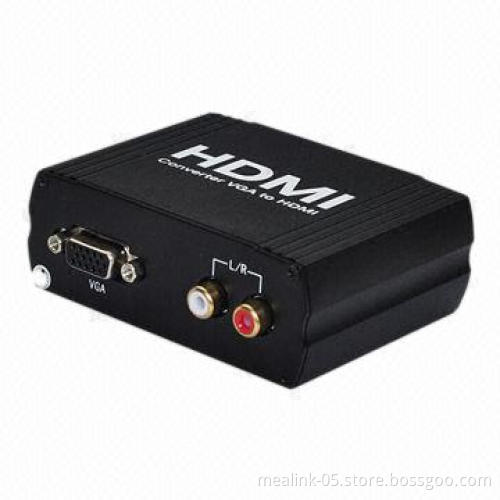

VGA+ R/L to HDMI® Converter with 100-240V AC Input Voltage, Sized 90 x 70 x 33mm

VGA+ R/L to HDMI® Converter with 100-240V AC Input Voltage, Sized 90 x 70 x 33mm

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Description:

The converter use a single VGA + R/L source, accessing tosingle HDMI® 1.1 sink
The converter allows one VGA + R/L device to be convertedeasily to one HDMI® 1.1 monitor or projector
Our devices offers solutions for noise, space and securityconcerns, data center control, information distribution, conferenceroom presentation, school and corporate training environment

Features:

1 x VGA + R/L input signal convert to one HDMI® 1.1 sinkdevices
1 x supports video input: VGA analog
1 x supports audio input: R/L analog
1 x HDMI® output: supports up to 1,280 x 1,024P, sameformat as input
1 x HDCP 1.1 protocol compliant
1 x supports CEC
1 x LED indication: when source or sink is working, LEDrelative to is light
1 x supports output up to 20 meters AWG26 cable length
1 x no loss of quality
1 x installs in minutes
1 x need 5V DC/1A power supply

Operating and connecting:

Connect VGA + R/L from VGA source devices into converterinput
Connect one cable from HDMI®1.3 display (monitor orprojector) into the converter outputs
Connect 5V power supply to the HDCVGA0101 converter

Specifications:

VGA input: supports up to SXGA/SGA/UGA (50/60/75Hz)

Audio input: R/L analog

HDMI® resolution: supports up to 1,280 x 1,024P, sameformat as input

Maximum transmission bandwidth: 5.1Gbps

Input video signal: 0.5 to 1.5Vp-p

Output DDC signal: 5Vp-p (TTL)

Output cable distance: d20m AWG26 HDMI® 1.3 standardcable

Maximum working current: 600mA

Power adapter formats:

Input: (50/60Hz) 100-240V AC
Output: 5V DC/1A

Operating temperature range: -15 to +55

Operating humidity range: 5 to 90% RH (no condensation)

Dimension (L x W x H): 90 x 70 x 33mm

Weight: 15g

The converter use a single VGA + R/L source, accessing tosingle HDMI® 1.1 sink

The converter allows one VGA + R/L device to be convertedeasily to one HDMI® 1.1 monitor or projector

Our devices offers solutions for noise, space and securityconcerns, data center control, information distribution, conferenceroom presentation, school and corporate training environment

1 x VGA + R/L input signal convert to one HDMI® 1.1 sinkdevices

1 x supports video input: VGA analog

1 x supports audio input: R/L analog

1 x HDMI® output: supports up to 1,280 x 1,024P, sameformat as input

1 x HDCP 1.1 protocol compliant

1 x supports CEC

1 x LED indication: when source or sink is working, LEDrelative to is light

1 x supports output up to 20 meters AWG26 cable length

1 x no loss of quality

1 x installs in minutes

1 x need 5V DC/1A power supply

Connect VGA + R/L from VGA source devices into converterinput
