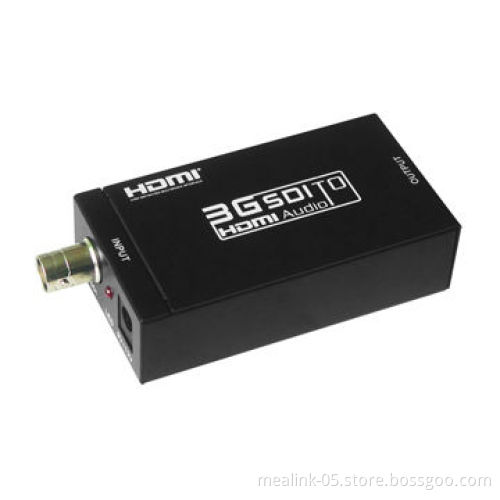

Mini 3G SDI to HDMI Converter

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Product introduction:

The Mini SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970Gbit/s to give you fast signal transmission without any loss
For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter

Features:

Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48kHz audio
Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
Connect with other units to extend your signal over long distances

Package:

In gift boxes
3G SDI to HDMI converter: 1pc
5V DC power supply adapter: 1pc
Operating manual: 1pc

Operation controls and functions:

SDI IN: this slot is where you connect the SDI source output
Power LED: this red LED illuminate when the device is connected with power supply
HDMI out: this slot is where you connect the HDMI display with HDMI cable
DC in: plug the 5-12V DC power supply into the unit

Specification:

Input port: 1 x BNC (SDI/HD-SDI/3G-SDI)
Output port: 1 x HDMI
SDI transmission rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s
In/output resolution: 480i, 576i, 720p at 50/59.94, 60, 1080i at 50/59.94/60, 1080 at 23.97/24/25/29.97/30/50/59.94/60
Power supply: DC 5-12V
ESD protection human body model ±8kV (air-gap discharge), ±4kV (contact discharge)
Dimensions: 80mm x 41mm x 25mm
Weight: 150g
Operating temperature: 0- 40°C/32-104°F
