Mini 3G SDI to HDMI ConverterNew

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Product introduction:

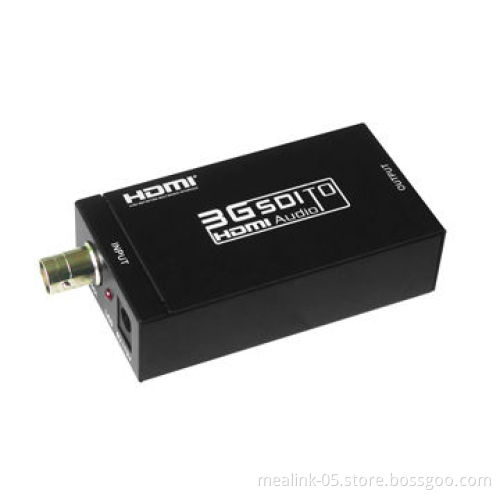

Mini SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970Gbit/s to give you fast signal transmission without any loss
For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built-in HDMI converter

Features:

Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
Supports SMPTE 425M, SMPTE 424M, SMPTE 292M and SMPTE 259M-C
Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channels, 48kHz audio
Conversion from SMPTE 425M level B to level A 1,080p 50/59.94/60 4:2:2 10-bit
Connects with other units to extend your signal over long distances

Specifications:

Input port: 1 x BNC (SDI/HD-SDI/3G-SDI)
Output port: 1 x HDMI
SDI transmission rates: 2.970Gbit/s and 2.970/1.001Gbit/s
In/output resolutions: 480i, 576i, 720p at 50/59.94, 60, 1080i at 50/59.94/60, 1080p at 23.97/24/25/29.97/30/50/59.94/60
Power supplies: DC 5 - 12V
ESD protection human body model: ±8kV (air-gap discharge), ±4kV (contact discharge)
Dimensions: 80mm x 41mm x 25 mm
Weight: 150g
Operating temperatures: 0-40°C/32-104°F
Storage temperatures: -20-60°C/-4-140°F
Relative humidity range: 20-90% RH (non-condensing)
Power consumption (max): 5W

Mini SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970Gbit/s to give you fast signal transmission without any loss

For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built-in HDMI converter

Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s

Supports SMPTE 425M, SMPTE 424M, SMPTE 292M and SMPTE 259M-C

Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channels, 48kHz audio

Conversion from SMPTE 425M level B to level A 1,080p 50/59.94/60 4:2:2 10-bit

Connects with other units to extend your signal over long distances

Input port: 1 x BNC (SDI/HD-SDI/3G-SDI)

Output port: 1 x HDMI

SDI transmission rates: 2.970Gbit/s and 2.970/1.001Gbit/s

In/output resolutions: 480i, 576i, 720p at 50/59.94, 60, 1080i at 50/59.94/60, 1080p at 23.97/24/25/29.97/30/50/59.94/60

Power supplies: DC 5 - 12V

ESD protection human body model: ±8kV (air-gap discharge), ±4kV (contact discharge)

Dimensions: 80mm x 41mm x 25 mm
