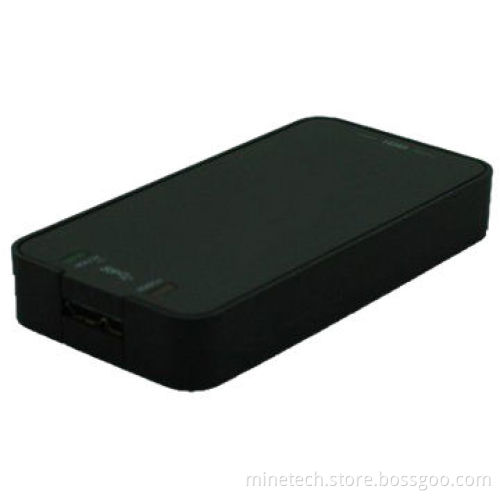

On Sale USB HDMI Capture Box, 1080P/60Hz

On Sale USB HDMI Capture Box, 1080P/60Hz

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Product specification:

Host interface: USB3.0, 300-350Mbps throughput
USB2.0, 40Mbps throughput
Input interface: 1 x HDMI interface
HDMI input: 1 x 1080P/60Hz, HD HDMI
HDMI audio input: 1 x LPCM audio signal
Standards: HDMI input formats, it meets the HDMI 1.4A standard,and supports 080p/60Hz 8bit (RGB, YUV)
Output format resolutions:640x480/720x480/720x576/768x576/800x600/1,024x768/1,280x720/1,280x800/1,280x960/1,280x1,024/1,368x768/1,440x900/1,600x1,200/1,680x1,050/1,920x1,080/1,920x1,200px
Frame rate: 25/29.97/30/50/59.94/60 fps
Video sampling rate HDMI: 165MHz
Audio and video capture: it meets the standards of UVC (USBvideo class) and UAC (USB audio Class)
Output color space: YUY2, RGB24
Video process:
- Color space switch: hardware color space switch
- Image scale: hardware scale
- Image adjustment: the image adjustment of brightness, contrast,hue, saturation
Others:
- Support of OS: it supports the following operating systems (x86and x64 versions): Microsoft Windows 7, Windows Server 2008 R2,Linux (Kernel version 2.6.38 and above), OS X (10.8 and above)
- Software compatibility: Microsoft Windows Media Encoder(Windows)
- Adobe flash media live encoder (Microsoft Windows, OS X)
- Real producer plus (Microsoft Windows)
- VLC (Microsoft Windows, OS X, Linux)
- QuickTime Broadcaster (OS X)
- QuickTime player (OS X)
- Wirecast (Microsoft Windows, OS X) and etc.
- Development interface compatibility: DirectShow (Windows),DirectSound (Windows),
- V4L2 (Linux), ALSA (Linux)
- OS X (QuickTime)
- Onboard memory: 64MB DDR2, the work rate is 300MHz, the bitwidth is 16 bits
- Upgrade the firmware can be upgraded
Size: 84.25x42.8x12.6mm
Power consumption: <= 2.5W
Working temperature: 0-50°C
Storage temperature: -20-70°C
Storage humidity: 5-90%
Standard accessory: USB3.0 cable x 1
