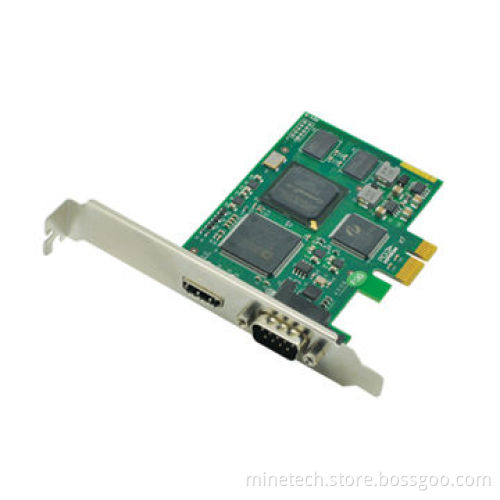

High-quality supports Linux capture HD 1,080P/60Hz HDCP signal capture card

High-quality supports Linux capture HD 1,080P/60Hz HDCP signal capture card

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Advanced features:

DMA transmission with high performance
HD input can switch signal dynamically, DVI/HDMI andY/Pb/Pr
HD input can be compatible with CVBS and S-video
HD input supports automatic detection of input video format,automatic detection of valid area of video
HD input supports for multistage image zoom and provides withthree scales for image aspect ratio
Deinterlace supports vertical blend and motion adaptive
Hardware color conversion, it can output RGB24, RGB32, YUY2,UYVY and I420
HD input supports color adjustment, it can adjust imagebrightness, contrast, hue, saturation, Gamma, also R, G, Bbrightness and contrast can be adjusted separately
HD input supports image vertical flip and mirror
Firmware can upgraded

Specifications:

Board size: 99.77 x 68.88mm
Host interface: PCI-express x1, low profile, 200Mbpstransmission bandwidth
Input interface: 1 HDMI interface (DVI)
1 DB9 interface (to YPbPr, S-video, CVBS, 1 unbalanced stereoaudio line in)
Maximum sampling rate
- CVBS: 54MHz (4x oversampling)
- HDMI/DVI: 225MHz
On-board memory: 128MB DDR2, 160MHz of working frequency, 32bit of bit wide
YPbPr input mode: 480i, 576i, 480p, 576p, 720p, 1,080i and1,080p
DVI input mode: 480i, 576i, 480p, 576p, 720p, 1,080i and1,080p
HDMI input mode: up to HDMI 1.3 standard, supports 36 bit deepcolor
CVBS input standard: PAL/NTSC
HD output image mode:
- Size: 40x30-2048x1536
- Frame rate: 1 to 100fps
- Color: YUY2, UYVY, RGB24, RGB32 and I420
SD output image mode size: 176x144-768x576
Frame rate: 1 to 30fps
Color: YUY2, UYVY, RGB24, RGB32 and I420
Support following operating systems (x 86 version or x64version):
- Windows XP professional
- Windows Server 2003
- Windows Vista
- Windows Server 2008
- Windows 7
- Windows Server 2008 R2
Power consumption: ≤8W
Operating temperature: 0 to 50°C
Storage temperature: -20 to 70°C
Relative humidity: 5 to 90%
