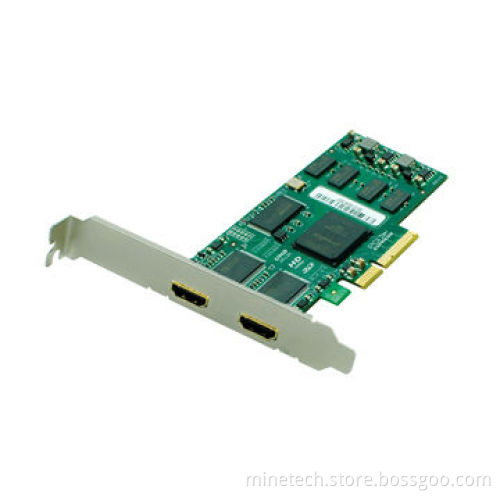

Simultaneously capture 2CH HD signal PCI-E HDMI capture card, 0 to 50°C operating temperature

Simultaneously capture 2CH HD signal PCI-E HDMI capture card, 0 to 50°C operating temperature

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Advanced features:

HD input can switch signal dynamically, signals includeDVI/HDMI®, VGA and YPbPr
HD input can be compatible with CVBS
Automatic detection of input video format, automatic detectionof effective area of video, automatic phase adjustment of capturingVGA
Setting effective image area manually, it can be used for imageflipping and supporting for support for multi-stage image zoom andprovide with three scales for image aspect ratio
Deinterlace supports vertical blend and motion adaptive
Hardware color conversion, can output RGB24, RGB32, UYVY, I420color format
Support color adjustment, it can adjust image brightness,contrast, hue, saturation, Gamma, also R, G, B brightness andcontrast can be adjusted separately, image vertical flip andmirror
Multiple cards for machine, each card can capture signalssimultaneously and have independent setting options
Firmware can upgrade

Specifications:

Board size: 147 x 108mm
Host interface: PCI-express x 4, half size, 480Mbpstransmission bandwidth
Input interface: 2 DVI-I interface
Maximum sampling rate: RGB
Component: 170MHz
HDMI/DVI: 225MHz
Onboard memory: 128MB DDR2 per channel, 160MHz of workingfrequency, 32-bit of bit wide
VGA input format: 640x400 to 2048x1536p, under 170MHz pixelsrate
YPbPr input format: 480i, 576i, 480p, 576p, 720p, 1080i and1080p
DVI input format: up to DVI 1.0 standard, singlecontinuity
HDMI input format: up to HDMI 1.3 standard, support 36 bit deepcolor
HD output image format:
- Size: 40x30 to 2048x1536p
- Frame rate: 1 to 100fps
- Color: YUY2, UYVY, RGB24, RGB32 and I420
Support following operating systems (x 86 version or x64version):
- Windows XP professional
- Windows Server 2003
- Windows Vista
- Windows Server 2008
- Windows 7
- Windows Server 2008 R2
Power consumption: ≤15W
Operating temperature: 0 to 50°C
Storage temperature: -20 to 70°C
Relative humidity: 5% to 90%
