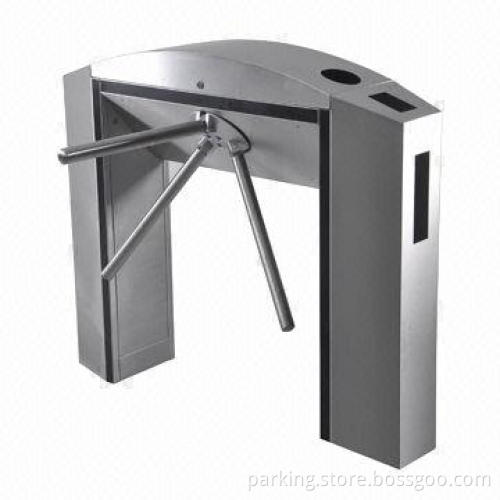

Tripod turnstile, compact design, can be mounted with display, passage counter and card reader

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Durability with minimal maintenance means years and millions of trouble free passages
Creates secure environment in, for example, reception area
Used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control

Specifications:

Passage width: 550mm
Throughput rate: 40p/m
Power supply: 220 to 240V AC
Operational voltage: 24V DC
Maximum power consumption: 32W
Frequency: 50 to 60Hz
Protection level: IP44
Working temperature: -25 to +70°C
Electro-magnetic drive: DC
Dimension excluding bars: 280x1,300x980mm
Net weight including bars: 60kg
Controller:
- Semi-auto mode: after reading card, passenger pushes arm by hand until he goes through barriers and arm arrives in home position
- Full-auto mode: passenger pushes arm at little strength after reading card and arm will automatically rotate forward by motor power until arm arrives in home position
- Pure mechanical mode: passenger pushes arm by hand until he goes through barriers
- Mono or bi-directional function in mechanical and electrical versions
- Automatic reset of barrier arms after each passage
- Cable or wireless remote control panel key override control for emergency situations

Durability with minimal maintenance means years and millions of trouble free passages

Creates secure environment in, for example, reception area

Used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control

Passage width: 550mm

Throughput rate: 40p/m

Power supply: 220 to 240V AC

Operational voltage: 24V DC

Maximum power consumption: 32W

Frequency: 50 to 60Hz

Protection level: IP44

Working temperature: -25 to +70°C

Electro-magnetic drive: DC

Dimension excluding bars: 280x1,300x980mm

Net weight including bars: 60kg

Controller:

Semi-auto mode: after reading card, passenger pushes arm by hand until he goes through barriers and arm arrives in home position
Full-auto mode: passenger pushes arm at little strength after reading card and arm will automatically rotate forward by motor power until arm arrives in home position
Pure mechanical mode: passenger pushes arm by hand until he goes through barriers
Mono or bi-directional function in mechanical and electrical versions
Automatic reset of barrier arms after each passage
Cable or wireless remote control panel key override control for emergency situations

Semi-auto mode: after reading card, passenger pushes arm by hand until he goes through barriers and arm arrives in home position

Full-auto mode: passenger pushes arm at little strength after reading card and arm will automatically rotate forward by motor power until arm arrives in home position

Pure mechanical mode: passenger pushes arm by hand until he goes through barriers

Mono or bi-directional function in mechanical and electrical versions

Automatic reset of barrier arms after each passage

Cable or wireless remote control panel key override control for emergency situations
