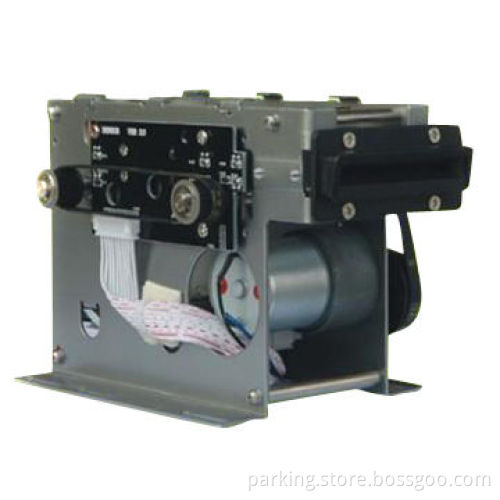

Card Collector with 24V DC Operating Voltage and LED for Status Indicator

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Designed and produced industrial standard
Core especially design for access barriers system
High-intensity and surface corrosion-resistant material
Applicable to automatic ticket checking system in tourist attractions and exhibition venues or others auto ticket checking system
Two important components which are straight/turning mechanism and customers can be combination to meet various needs
Industrial design fit for high and low temperature environment
Can install bar code scanner, RF reader or other tickets checking device
Slotting functions with paper tickets, can be set 4 various drilling locations
Aclinic tickets up to 90° and aclinic tickets out (optional)Automatically collect tickets and over 3 seconds automatically quit tickets
Collect tickets continuously: second ticket can collected when first ticket waiting to be taken away
Adjustable tickets collecting speed to fit for various bar code scanners and RF readers
LED for status indicator and buzzer alarm for failure

Specification:

Operating voltage: 24V DC
Operating current: 5A
Slotting speed: about 0.6s
Collecting speed: about 0.5s (adjustable)
Card materials: paper tickets, RF cards
Operating temperatures: -20 to 80°C
Operating relative humidity range: 30 to 90% RH
Used condition: installed in bin
Mode K2: installed on card collector (one card straight mechanism can be used as card collector

Applications:
