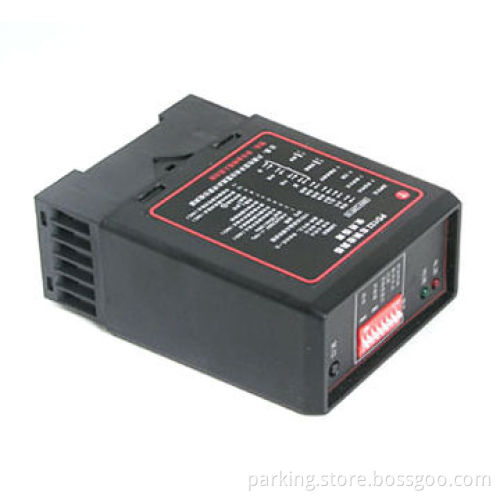

Vehicle Loop Detector, Suitable for Safe Guarding Access Ways or Counting Vehicles Sensor

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Two-way output relays
Two outputs of them are unlimited when corresponding loop is permanently covered, while others are multi-mode that can beset by users
Direction detecting function can be used to statistics the vehicle flux
Principle is based on a change in the inductance within loop which is caused by the metallic components of passing vehicles
Changes are picked up and evaluated by microprocessor
Ease of use due to automatic calibration when operating voltage is applied

Specifications:

Working voltage: 110 to 220V AC and 12 to 24V DC
Power: 2.5W
Frequency range: 20 to 170kHz
Sensitivity: 8 grades adjustable
Reaction time: 100ms
Environment compensation: automatic drift compensation
Loop inductance:
- Ideal: 80 to 300μH (including connection line)
- Maximum: 50 to 500μH (including connection line)
Loop connection wiring: 5m (maximum) and twisted 20 times at least per meter
Total resistance: <10Ω
Operating temperature: -20 to 65°C
Relative humidity: 95% RH (maximum)
Storage temperature: -20 to 85°C
Size: 78 x 40 x 108mm
