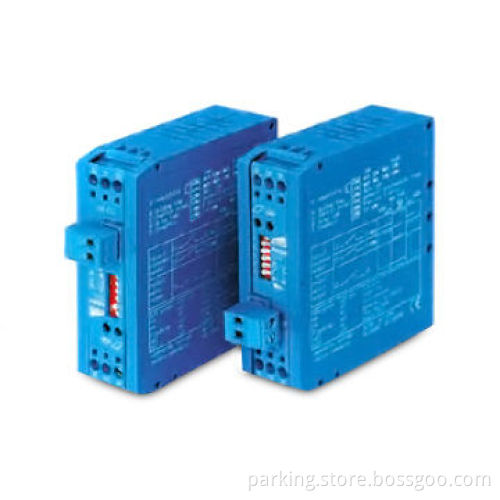

3W Single Loop Detector/Stable Vehicle Detector, Work Mode Can be Set by DIP Switch

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

When the DIP switch is on position or changing the presence output time, self-detection would be done

ABS align to the pillar which can combine with each other compactly

Presence output time can be adjustable

Work mode can be set by the DIP switchPulse output or permanent output can be adjustable

Technical data:

Power supply: 12 to 24V AC/DC

Power consumption: 3W maximum

Output relay: 120V/3A AC

Work temperature: -20 to +70 deg. C

Loop inductance range: 50 to 800uH (100 to 300uH)

Work frequency: 20 to 130kHz

Sensitivity: 4 class adjustable

Automatic calibration: 1 to 2s

Dimension (L x W x H): 79 x 22.5 x 90mm
