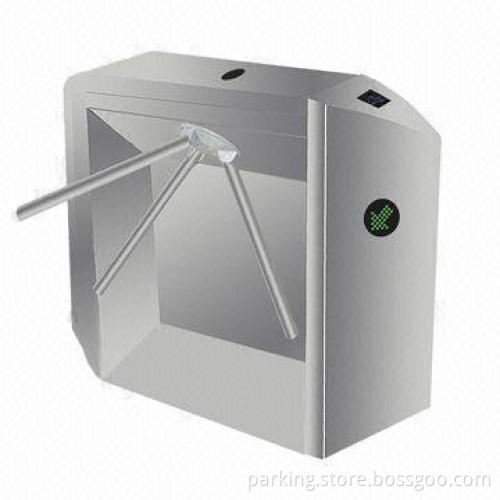

Tripod turnstile, can be mounted with display, passage counter and card reader

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Durability with minimal maintenance means years and millions of trouble free passages

Creates secure environment in, for example, reception area

Used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control

Passage width: 550mm

Throughput rate: 40p/m

Voltage: 220 to 240V AC

Operating voltage: 24V DC

Maximum power consumption: 32W

Frequency: 50 to 60Hz

Protection grade: IP44

Working temperature: -25 to +70°C

Electro-magnetic drive: DC

Dimensions: 280x1400x9800mm (excluding bars)

Net weight: 78kg (including bars)

Semi-auto mode: after reading card, passenger pushes arm by hand untill goes through barriers and arm arrives in home position

Full-auto mode: passenger pushes arm at little strength after reading card and arm will automatically rotate forward by motor power untill arm arrives in home position

Pure mechanical mode: passenger pushes arm by hand untill he goes through barriers

Mono or bidirectional function in mechanical and electrical versions

Automatic reset of barrier arms after each passage

Cable or wireless remote control panel key override control for emergency situations
