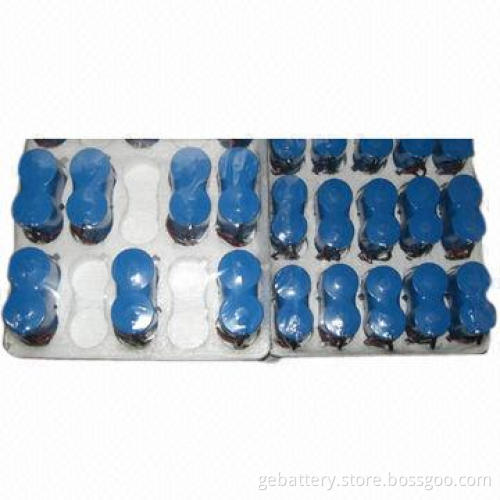

Lithium Thionyl Chloride, 2,400mAh Nominal Capability

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or PayPal

Product Description

Open circuit voltage: 3.6V

Nominal capability: 2,400mAh (1.8KΩ/2mA, cut-off voltage 2.0V)

Load voltage: (stored for a year or less, 20mA/165Ω) ≥3.3V

Recommended continuous current: 25 ± 2, to get 50% of the nominal capacity, 2.0V cut off 33Ω/100mA (maximum)

Please consult GEB

Pulse current: 200mA (maximum)

Please consult GEB

Outside dimensions: diameter 14.5mm

Height: 50.5

See the attached drawing 12

Normal weight: 19g

Volume of battery: 8.3cm3

Operating temperature: -55 to +85 degrees Celsius
