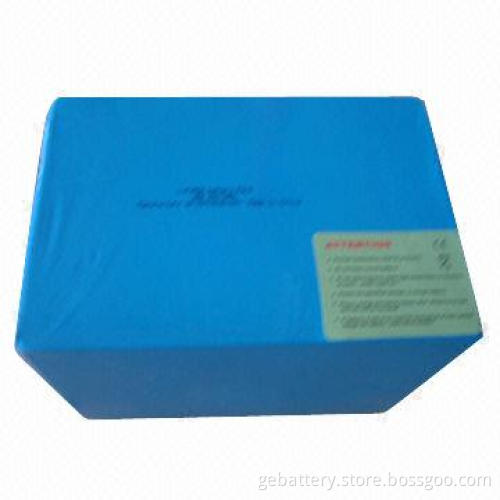

60V/20Ah LiFePO4 Battery Pack

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or PayPal

Product Description

Nominal voltage: 60V

Rated capacity: 20Ah

Dimensions: 280*200*145mm

Standard charging:

Fast charging:

Standard discharge:

Fast discharge:

Weight: about 11kg

Cycle lifespan: 2,000 times at DOD80%

Maximum continuous charging current: 5A

Continuous discharging current: 10-20A

Maximum discharging current: 20-40A

BMS and balance: short-circuit protection, overcharge protection, over-discharge protection, over-current protection, balance

Charger: 73V, 2A

Storage temperature range:

Pressure: 86-106kPa

Charging temperature range: 0-45°C

Operating temperature range: 0-60°C

Constant current: 2A

Constant voltage: 73V, 100mA cut-off

Constant current: 5A

Constant voltage: 73V, 100mA cut-off

Constant current: 10A

End voltage: 40V

Constant current: 20A

End voltage: 40V

Temperature: -10-40°C

Relative humidity: 45-75%
