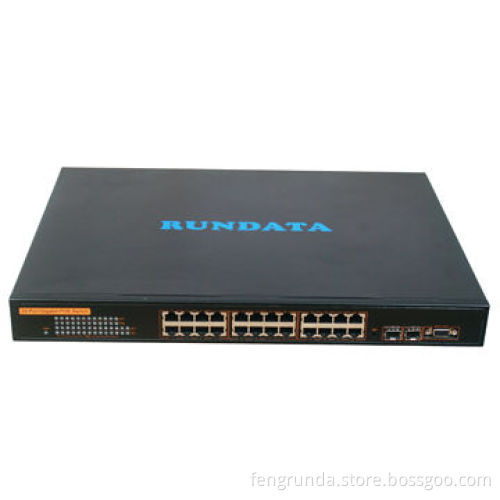

24-channel PoE Switch with 2 Gigabit SFP Ports

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Model: PS2024G

Network protocols and standards:

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet

Power specification:

Power consumption: maximum 400W
PoE power: 400W
Voltage: 100-240V AC, 50-60Hz

Network interface:

24 10/100M ports (MDI / MDIX adaptive); ports with PoE features (24)
2 10/100/1000M Gigabit copper RJ45 ports (MDI / MDIX adaptive)
2 SFP GBIC fiber module slots

Physical specification:

Dimension: 440 x 350x 44mm
Weight: 5.5kg
Electromagnetic radiation
CE mark, commercial
FCC part 15 Class A
VCCI Class A
C-Tick

Environmental norms:

Operating temperature: 0- 50°C (32-104° F)
Storage temperature: -20- 70°C (-4-158° F)
Operating humidity: maximum relative humidity 90% without condensation
Storage humidity: 95% maximum relative humidity, non-condensing
Working height: up to 10,000 feet (3,000 meters)
Storage altitude: the largest 10,000 feet (3,000 meters)

LEDs:

Each device: power light
Per port (10/100 and Gigabit): connection speed indicator
Per PoE port: PoE power-on LED

Radiation/electromagnetic immunity, EN 55024

Certifications: CE, FCC, RoHS

Performance specification:

Forwarding modes: store and forward
Bandwidth: 12.8Gbps (non-blocking)
Network latency: 100 to 100 Mbps transmission, storage and forwarding mode under a 64-byte frame delay is less than 20 microseconds
Buffer memory: 3MB per system
Addressing: 48-bit MAC address
The address database size: 8,000 per system MAC address
Mean failure interval (MTBF): 300,000 hours (about 34 years)

Warranty: 1 year

Packaing contents:

PS2024G, 24 port POE switch
The power cord
Datasheet

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-X

IEEE 802.3x Flow Control

IEEE 802.3af Power over Ethernet

Power consumption: maximum 400W

PoE power: 400W

Voltage: 100-240V AC, 50-60Hz

24 10/100M ports (MDI / MDIX adaptive); ports with PoE features (24)

2 10/100/1000M Gigabit copper RJ45 ports (MDI / MDIX adaptive)

2 SFP GBIC fiber module slots

Dimension: 440 x 350x 44mm

Weight: 5.5kg

Electromagnetic radiation

CE mark, commercial

FCC part 15 Class A

VCCI Class A

C-Tick

Operating temperature: 0- 50°C (32-104° F)

Storage temperature: -20- 70°C (-4-158° F)

Operating humidity: maximum relative humidity 90% without condensation

Storage humidity: 95% maximum relative humidity, non-condensing

Working height: up to 10,000 feet (3,000 meters)

Storage altitude: the largest 10,000 feet (3,000 meters)

Each device: power light

Per port (10/100 and Gigabit): connection speed indicator

Per PoE port: PoE power-on LED

Forwarding modes: store and forward

Bandwidth: 12.8Gbps (non-blocking)

Network latency: 100 to 100 Mbps transmission, storage and forwarding mode under a 64-byte frame delay is less than 20 microseconds

Buffer memory: 3MB per system

Addressing: 48-bit MAC address

The address database size: 8,000 per system MAC address

Mean failure interval (MTBF): 300,000 hours (about 34 years)

PS2024G, 24 port POE switch

The power cord

Datasheet
