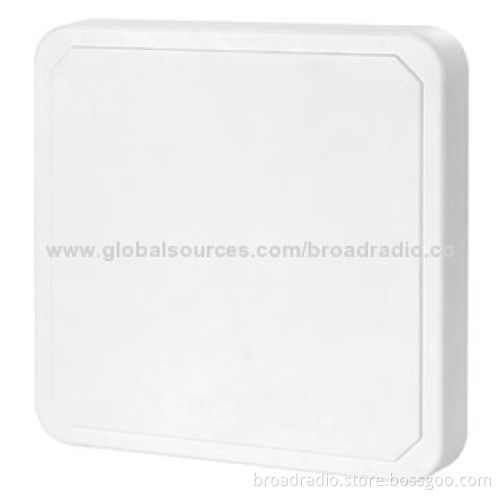

902 to 928MHz Circular Panel Antenna with 9dBi Gain, VSWR Lower Than 1.3, IP67 Waterproof Level

902 to 928MHz Circular Panel Antenna with 9dBi Gain, VSWR Lower Than 1.3, IP67 Waterproof Level

Get Latest Price

Payment Type:: T/T, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, Western Union

Product Description

Features:

Electrical properties: it is a general antenna for UHF RFID applications with high gain and low VSWR
Mechanical properties: the compact and artistic antenna is suitable for all kinds of severe environment for its dual waterproof design with gasket and silicone and strengthening rib of shell

Main applications:

MA-AF-01CR is suitable for UHF RFID applications, such as entrance guard, warehouse management, logistics and retail item management

Performance specifications:

Frequency range: 902-928MHz (EU frequency MA-AF-01-EU)
Maximum VSWR: ≤1.3:1
Gain: >9dBi
H side HPBW: 70°
E side HPBW: 70°
Polarization: circular polarization
Relative humidity range: 5-95%
Input impedance: 50Ω
Antenna connection: N-50KFD (Type N female)

Physical specifications:

Size: 258 x 258 x 36mm
Weight: 0.91kg (without bracket)
Material: engineering plastic ASA and aluminum
Color: ivory and white
Enclosure rating: IP67
Operational temperatures: -40-85°C
Storage temperatures: -40-85°C

Advantages:

Waterproof protection adapters with IP67 grade with dual waterproof
It is available for outdoors due to the high-quality ASA materials
Strengthening rib of shell is stronger and the thickness of shell is 0.2mm
Back-fed structure ensures the stable connection and connector is from a famous company
Ultra-thin aluminum plate is after sandblasting anodic oxidation, anodic oxidation it looks beautiful and it is rust-proof
The ISO screws are universal
It is equipped with antenna bracket

Electrical properties: it is a general antenna for UHF RFID applications with high gain and low VSWR

Mechanical properties: the compact and artistic antenna is suitable for all kinds of severe environment for its dual waterproof design with gasket and silicone and strengthening rib of shell

MA-AF-01CR is suitable for UHF RFID applications, such as entrance guard, warehouse management, logistics and retail item management

Frequency range: 902-928MHz (EU frequency MA-AF-01-EU)

Maximum VSWR: ≤1.3:1

Gain: >9dBi

H side HPBW: 70°

E side HPBW: 70°

Polarization: circular polarization

Relative humidity range: 5-95%

Input impedance: 50Ω

Antenna connection: N-50KFD (Type N female)

Size: 258 x 258 x 36mm

Weight: 0.91kg (without bracket)
