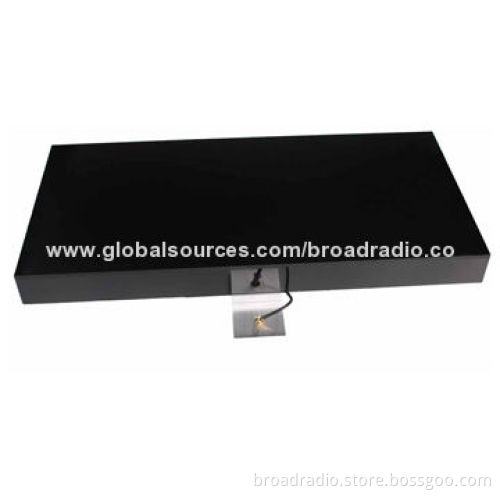

902 to 928MHz Narrow Beam Circular UHF Panel Antenna with 10.5dBi Gain, VSWR Lower Than 1.3:1

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, PayPal

Product Description

Features:

Electrical properties: suitable for UHF band RFID antenna terminal general case, the directional narrow beam, high-gain characteristics
Mechanical properties: suitable for all occasions, access control, fleet management and other uses

Main applications:

MA-AF-16 antenna easily applied to situations UHF band access control, vehicle management and other uses

Performance specifications:

Physical specifications:

Electrical properties: suitable for UHF band RFID antenna terminal general case, the directional narrow beam, high-gain characteristics

Mechanical properties: suitable for all occasions, access control, fleet management and other uses

MA-AF-16 antenna easily applied to situations UHF band access control, vehicle management and other uses

VSWR: ≤1.3:1

Gain: 10.5dBi

Polarization: circular

Axial ratio: <3dB

Relative humidity: 5-95% RH

Input impedance: 50Ω

Antenna connector: SMA-50KFD female

Size: 460x220x35mm

Weight: 2.5kg

Materials: acrylic, aluminum

Color: ivory-white

Operating temperatures: -40-+ 85°C

Storage temperatures: -40-+ 85°C
