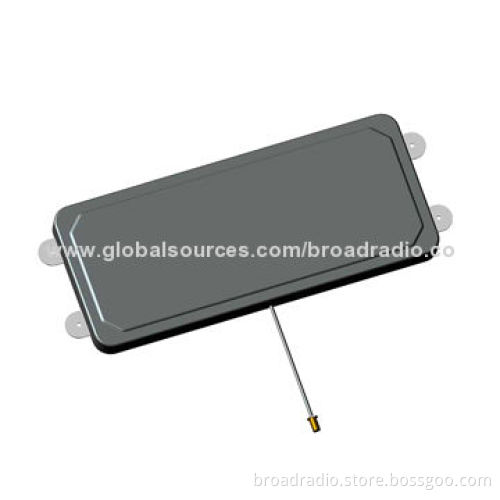

902 to 928MHz Narrow Beam Circular UHF Panel Antenna with 8.5dBi Gain, VSWR Lower Than 1.3:1

902 to 928MHz Narrow Beam Circular UHF Panel Antenna with 8.5dBi Gain, VSWR Lower Than 1.3:1

Get Latest Price

Payment Type:: T/T, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, Western Union

Product Description

Features

Electrical properties: suitable for the UHF band RFID universal antenna terminal situations, with directionality, narrow beam, high gain, miniaturization
Mechanical properties: small size, suitable for various access control, vehicle management and more

Main applications:

MA-AF-08 antenna can be conveniently used in UHF band access control, vehicle management and more

Performance specifications:

Frequency range: 902MHz-928MHz
Maximum VSWR: ≤1.3:1
Gain: >8dBi
Polarization: circular polarization
Axial ratio: <3dB
Relative humidity: 5%-95%
Input impedance: 50Ω
Antenna connector: SMA-50KFD female

Physical specifications:

Size: 315mmx129mmx20mm
Weight: 400g
Material: FR-4 and stainless steel
Color: silver white
Operating temperatures: -40-+85°C
Storage temperatures: -40-+85°C

Electrical properties: suitable for the UHF band RFID universal antenna terminal situations, with directionality, narrow beam, high gain, miniaturization

Mechanical properties: small size, suitable for various access control, vehicle management and more

MA-AF-08 antenna can be conveniently used in UHF band access control, vehicle management and more

Frequency range: 902MHz-928MHz

Maximum VSWR: ≤1.3:1

Gain: >8dBi

Polarization: circular polarization

Axial ratio: <3dB

Relative humidity: 5%-95%

Input impedance: 50Ω

Antenna connector: SMA-50KFD female

Size: 315mmx129mmx20mm

Weight: 400g
