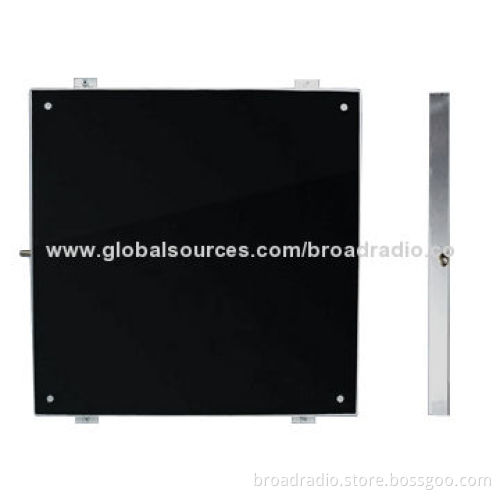

Ultra-thin 780 to 980MHz Circular UHF Panel Antenna with 5dBi Gain, VSWR Lower than 1.3

Ultra-thin 780 to 980MHz Circular UHF Panel Antenna with 5dBi Gain, VSWR Lower than 1.3

Get Latest Price

Payment Type:: T/T, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, Western Union

Product Description

Features

Suitable for UHF band RFID applications universal antenna has high-gain, low VSWR characteristics
Mechanical properties: circularly polarized UHF RFID antenna versatile, ultra-thin design, compact appearance, excellent technology, simple installation, mainly for the reader with 900MHz transmitter and receiving RF signals
Product advantage: low-profile, excellent VSWR and axial ratio parameters, UV aging, a variety of selectable RF connectors, circular polarization direction can be customized, the default is RHCP

Main applications:

MA-AF-05 antenna use in RFID parking management system, file management, logistics management, asset management, warehouse management, personnel management, and other things related fields
The main application areas in the warehouse, warehouse, logistics and distribution centers, airports, hospitals, logistics and transport terminals, goods conveyor belts, document file cabinets and other related fields

Performance specifications:

Frequency range: 780-980MHz
VSWR: ≤1.3
Gain: >5/8dBi
Polarization: RHCP
Axial ratio: <3dB
Half-power beamwidth: 72°
Front-to-rear ratio: ≥15dB
Input impedance: 50Ω
Connector types: SMA female
Return loss: <16dB
Connector position: side
Side: 280×280×20mm
Weight: 0.5kg (not including the bracket)
Materials: ASA, copper, FR4
Color: black
