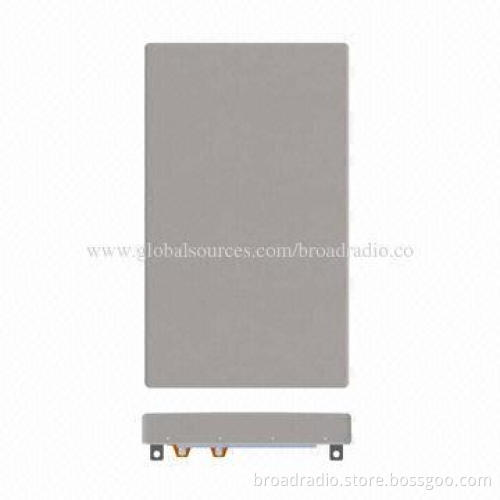

XXX Pol Panel 790-960/1710-2170/2300-2690MHz 50/50/50degree10/10/10dBi 0degreeF Base Station Antenna
  • XXX Pol Panel 790-960/1710-2170/2300-2690MHz 50/50/50degree10/10/10dBi 0degreeF Base Station Antenna
  • XXX Pol Panel 790-960/1710-2170/2300-2690MHz 50/50/50degree10/10/10dBi 0degreeF Base Station Antenna
XXX Pol Panel 790-960/1710-2170/2300-2690MHz 50/50/50degree10/10/10dBi 0degreeF Base Station Antenna
XXX Pol Panel 790-960/1710-2170/2300-2690MHz 50/50/50degree10/10/10dBi 0degreeF Base Station Antenna

XXX Pol Panel 790-960/1710-2170/2300-2690MHz 50/50/50degree10/10/10dBi 0degreeF Base Station Antenna

Get Latest Price
Payment Type:
T/T, Western Union, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union, PayPal
Product Description
Product Description
  • Specifications:
    • Frequency range (MHz): 790-960, 1,710-2,170, 2,300-2,690
    • Gain (dBi):>9.5
    • Return loss (dB):>14 (VSWR <1.5)
    • Polarization: ±45°
    • Horizontal beamwidth (°): 50 (3dB), <90 (20dB)
    • Vertical beamwidth (°):50 (3dB), <90 (20dB)
    • Horizontal sidelobe suppression (dB): (Deviating from the axially azimuth >|± 45°|)> 20
    • Vertical sidelobe suppression(dB): (Deviating from the axially azimuth >|± 45°|)> 20
    • Preset tilt (°) :0
    • Front to back ratio (dB): >30
    • Port Isolation (dB): >25
    • Power rating: 50W
    • Inter-modulation (dBm): -107 (@2 x 43dBm)
    • Impedance: 50Ohms
    • Lightning protection: DC grounded
    • Connector type: 2 x 7/16 DIN female
  • Mechanicaal data:
    • Antenna dimensions: 884 x 1,350 x 137mm
    • Antenna weight: 32kg
    • Radome material: UV-ASA
    • Pole diameters: 75-110mm
    • Mounting options: Fixed clamps and adjustable clamps
    • Environmental ratings:
      • Humidity: 95% RH @ 30℃
      • Temperatures: -40-70℃
    • Anti-ice capacity (mm): 10
    • Rated wind velocity (km/h): 160 (working)
    • Rain resistance (mm/h): 140
  • Frequency range (MHz): 790-960, 1,710-2,170, 2,300-2,690
  • Gain (dBi):>9.5
  • Return loss (dB):>14 (VSWR <1.5)
  • Polarization: ±45°
  • Horizontal beamwidth (°): 50 (3dB), <90 (20dB)
  • Vertical beamwidth (°):50 (3dB), <90 (20dB)
  • Horizontal sidelobe suppression (dB): (Deviating from the axially azimuth >|± 45°|)> 20
  • Vertical sidelobe suppression(dB): (Deviating from the axially azimuth >|± 45°|)> 20
  • Preset tilt (°) :0
  • Front to back ratio (dB): >30
  • Port Isolation (dB): >25
  • Power rating: 50W
  • Inter-modulation (dBm): -107 (@2 x 43dBm)
  • Impedance: 50Ohms
  • Lightning protection: DC grounded
  • Connector type: 2 x 7/16 DIN female
  • Antenna dimensions: 884 x 1,350 x 137mm
  • Antenna weight: 32kg
  • Radome material: UV-ASA
  • Pole diameters: 75-110mm
  • Mounting options: Fixed clamps and adjustable clamps
  • Environmental ratings:
    • Humidity: 95% RH @ 30℃
    • Temperatures: -40-70℃
  • Anti-ice capacity (mm): 10
  • Rated wind velocity (km/h): 160 (working)
  • Rain resistance (mm/h): 140
  • Humidity: 95% RH @ 30℃
  • Temperatures: -40-70℃
