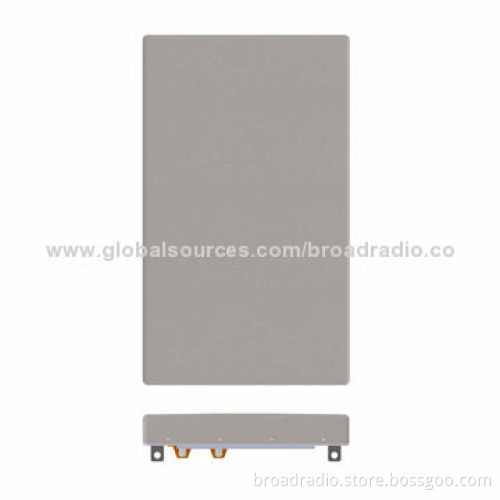

XXX Pol Panel 698-894/1710-2170/2300-2690MHz/50/50/50 Degree, 10/10/10dBi F Base Station Antenna
  • XXX Pol Panel 698-894/1710-2170/2300-2690MHz/50/50/50 Degree, 10/10/10dBi F Base Station Antenna
  • XXX Pol Panel 698-894/1710-2170/2300-2690MHz/50/50/50 Degree, 10/10/10dBi F Base Station Antenna
XXX Pol Panel 698-894/1710-2170/2300-2690MHz/50/50/50 Degree, 10/10/10dBi F Base Station Antenna
XXX Pol Panel 698-894/1710-2170/2300-2690MHz/50/50/50 Degree, 10/10/10dBi F Base Station Antenna

XXX Pol Panel 698-894/1710-2170/2300-2690MHz/50/50/50 Degree, 10/10/10dBi F Base Station Antenna

Get Latest Price
Payment Type:
T/T, Western Union, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union, PayPal
Product Description
Product Description
  • V Pol panel 824-960 50°10dBi 0-20°T
    • Model no.:GPA0505M
  • RF specifications:
    • Frequency range (MHz): 698-894/1710-2170/2300-2690
    • Gain (dBi):>9.5
    • Return loss (dB):>14 (VSWR <1.5)
    • Polarization: ±45°
    • Horizontal beam width (°): 50 (3dB), <90(20dB)
    • Vertical beam width (°): 50 (3dB), <90(20dB)
    • Horizontal side lobe suppression (dB): (deviating from the axially azimuth >|± 45°|)> 20
    • Vertical side lobe suppression (dB): (deviating from the axially azimuth >|± 45°|)> 20
    • Preset tilt (°): 0
    • Front to back ratio (dB):>30
    • Port isolation (dB):>25
    • Power rating (W): 50
    • Inter-modulation (dBm): -107 (@ 2 x 43dBm)
    • Impede TTnet (ohm): 50
    • Lightning protection: DC grounded
    • Connector type: 2x 7/16 DIN female
  • Mechanical data:
    • Antenna dimensions (mm): 962 x 1,452 x 148
    • Antenna weight (kg): 38
    • Radome material: UV-ASA
    • Pole diameter (mm): 75-110
    • Mounting options: fixed and adjustable clamps
    • Environmental ratings:
      • Humidity: 95%RH @ 30℃
      • Temperatures (℃): -40~70℃
    • Anti-ice capacity (mm): 10
    • Rated wind velocity (km/h): 160 (working)
    • Rain resistance (mm/h):140
  • Model no.:GPA0505M
  • Frequency range (MHz): 698-894/1710-2170/2300-2690
  • Gain (dBi):>9.5
  • Return loss (dB):>14 (VSWR <1.5)
  • Polarization: ±45°
  • Horizontal beam width (°): 50 (3dB), <90(20dB)
  • Vertical beam width (°): 50 (3dB), <90(20dB)
  • Horizontal side lobe suppression (dB): (deviating from the axially azimuth >|± 45°|)> 20
  • Vertical side lobe suppression (dB): (deviating from the axially azimuth >|± 45°|)> 20
  • Preset tilt (°): 0
  • Front to back ratio (dB):>30
  • Port isolation (dB):>25
  • Power rating (W): 50
  • Inter-modulation (dBm): -107 (@ 2 x 43dBm)
  • Impede TTnet (ohm): 50
  • Lightning protection: DC grounded
  • Connector type: 2x 7/16 DIN female
  • Antenna dimensions (mm): 962 x 1,452 x 148
  • Antenna weight (kg): 38
  • Radome material: UV-ASA
  • Pole diameter (mm): 75-110
  • Mounting options: fixed and adjustable clamps
  • Environmental ratings:
    • Humidity: 95%RH @ 30℃
    • Temperatures (℃): -40~70℃
  • Anti-ice capacity (mm): 10
  • Rated wind velocity (km/h): 160 (working)
  • Rain resistance (mm/h):140
  • Humidity: 95%RH @ 30℃
  • Temperatures (℃): -40~70℃
