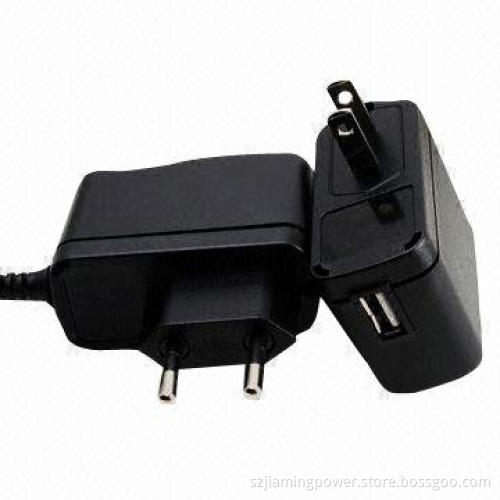

5V/1A USB mobile phone charger with Euro and US plug
  • 5V/1A USB mobile phone charger with Euro and US plug
5V/1A USB mobile phone charger with Euro and US plug

5V/1A USB mobile phone charger with Euro and US plug

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • Single input, wall mount style
    • Single output maximum 5W, anywhere output voltage 5V DC
    • Optional cc mode for mobile
    • Meet CEC regulation, efficiency level V
  • Specifications:
    • Input voltage: 90 to 264V AC
    • Input current: 0.1A maximum
    • Efficiency: 75% or better under maximum load (averageefficiency) fit requirement for CEC models
    • Inrush current: 40A (maximum) at 240V AC
    • Output voltage: 3 to 30V DC
    • Voltage regulation: ±5% (maximum)
    • Maximum power: 5W
    • Withstand voltage: I/P-O/P: 3000V AC
    • Operating temperature: -20 to 40°C
    • Storage temperature: -40 to 70°C
    • Operating humidity: 5 to 95%RH
    • Protection: short-circuit
    • Safety: IEC/UL/EN60950-1, CE, LVD
    • EMI: (EN 55022, CISPR22, and FCC part 15) class B, EN61000-3-2, 3, EN 61000-4-2, 3, 4, 5, 6, 8, 11, EN 55024
    • Standard output connector: USB on case or 1.5m cord with DCbarrel jack
    • Optional:
      • FHA05-050060-wz: 5V, 0.6A, 3W, IV
      • FHA05-050100-wz: 5V, 1.0A, 5W, V
  • Single input, wall mount style
  • Single output maximum 5W, anywhere output voltage 5V DC
  • Optional cc mode for mobile
  • Meet CEC regulation, efficiency level V
  • Input voltage: 90 to 264V AC
  • Input current: 0.1A maximum
  • Efficiency: 75% or better under maximum load (averageefficiency) fit requirement for CEC models
  • Inrush current: 40A (maximum) at 240V AC
  • Output voltage: 3 to 30V DC
  • Voltage regulation: ±5% (maximum)
  • Maximum power: 5W
  • Withstand voltage: I/P-O/P: 3000V AC
  • Operating temperature: -20 to 40°C
  • Storage temperature: -40 to 70°C
  • Operating humidity: 5 to 95%RH
  • Protection: short-circuit
  • Safety: IEC/UL/EN60950-1, CE, LVD
  • EMI: (EN 55022, CISPR22, and FCC part 15) class B, EN61000-3-2, 3, EN 61000-4-2, 3, 4, 5, 6, 8, 11, EN 55024
  • Standard output connector: USB on case or 1.5m cord with DCbarrel jack
  • Optional:
    • FHA05-050060-wz: 5V, 0.6A, 3W, IV
    • FHA05-050100-wz: 5V, 1.0A, 5W, V
  • FHA05-050060-wz: 5V, 0.6A, 3W, IV
  • FHA05-050100-wz: 5V, 1.0A, 5W, V
